Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHTS
by
SWITCHES AND SENSORS AND ECM
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
11
15
16
17
18
19
20
21
22
1
Asm. Engine Cover Magneto
1203626
$404,24 Unit Price incl. VAT
2
Asm. Cover Stator
1203334
Not Available
3
Bushing
3514378
$19,83 Unit Price incl. VAT
4
Stator
4011982
2208144
$1 889,99 Unit Price incl. VAT
5
SCR-M6X1.0X35 SOC/CP-Y/D
7517848
$10,49 Unit Price incl. VAT
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
O-Ring
5412458
Not Available
8
SEAL OIL
5412455
$41,99 Unit Price incl. VAT
9
Wire Spark Plug [If built after 10/09/06]
4011844
$104,99 Unit Price incl. VAT
10
BUSHING
3514553
Not Available
11
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
12
NUT
7547213
$9,44 Unit Price incl. VAT
13
Flywheel
4011981
2208144
$1 889,99 Unit Price incl. VAT
14
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
15
Bracket Wire Holddown
5245364
$73,49 Unit Price incl. VAT
16
SEAL FLANGED
5412881
$57,74 Unit Price incl. VAT
17
SCREW(10)
7515156
$7,34 Unit Price incl. VAT
18
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
19
Kit Ignition Coil (Incl. 24 26 28)
2876049
$451,49 Unit Price incl. VAT
20
NUT(10) (Euro SKS)
7542151
$7,34 Unit Price incl. VAT
21
Wire Spark Plug [If built after 10/09/06]
4011845
$104,99 Unit Price incl. VAT
22
PIN-DOWEL M4X10-SS
7663002
$9,44 Unit Price incl. VAT

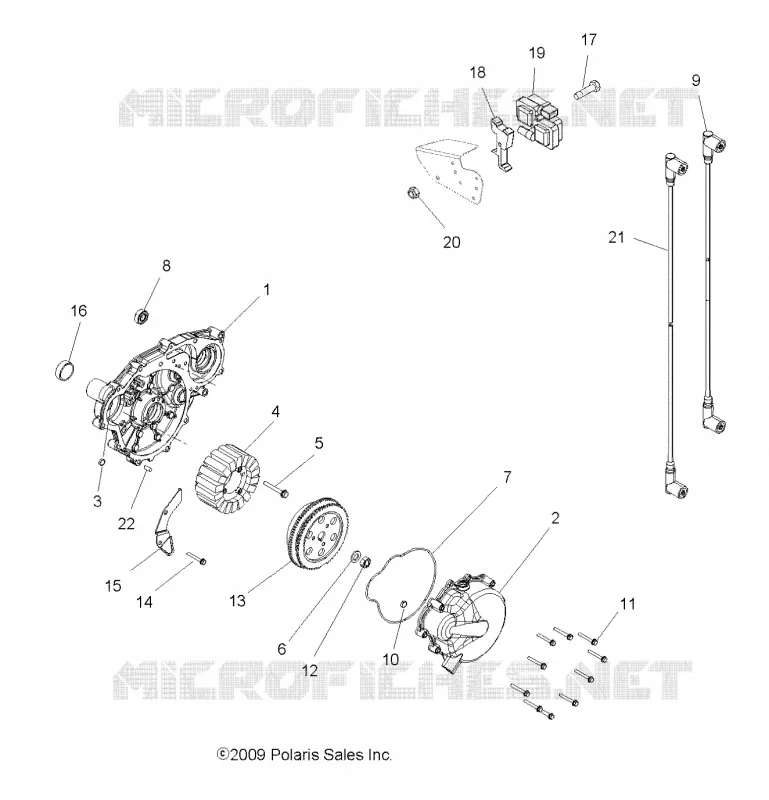

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
