Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
FRONT SUSPENSION STRUT
5
Parts Diagram
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
by
COOLING SYSTEM (BUILT 4/07/09 AND AFTER)
FRONT SUSPENSION STRUT
1
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
16
17
18
19
20
21
22
23
1
2
3
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
1
Asm. Hubstrut RH [INCL. 5 6 17-19]
1822826
$572,24 Unit Price incl. VAT
1
Asm. Hubstrut LH [INCL. 5 6 17-19]
1822825
$572,24 Unit Price incl. VAT
2
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
3
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
4
PIVOT-BALL TOP DELRIN
5432872
$19,94 Unit Price incl. VAT
5
SPACER-1/2-20 STRUT
5132062
$36,74 Unit Price incl. VAT
6
PIVOT-BALL BOTTOM DELRIN
5432871
$19,94 Unit Price incl. VAT
7
RETAINER-SPRING STRUT
5243364
$36,74 Unit Price incl. VAT
8
Spring Compression Black [AC][AT]
7042301067
Not Available
9
BUMPER-MCU 17.8MM ID
5412665
$12,59 Unit Price incl. VAT
10
BOLT(10)
7512312
$2,09 Unit Price incl. VAT
11
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
12
NUT-1/2-20 NYLOK THIN HT-Y
7547104
$2,09 Unit Price incl. VAT
13
RING-RETAINING 2.500 INTERNAL
7710507
$4,19 Unit Price incl. VAT
14
BEARING-WHEEL 35X64X37MM
3514634
$73,49 Unit Price incl. VAT
15
STRUT-FRONT 18X30MM 184.7MM LT
7041762
$230,99 Unit Price incl. VAT
16
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
17
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
18
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
19
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
20
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
21
BALL-JOINT GREASELESS STRUT
7061158
7061306
$52,49 Unit Price incl. VAT
22
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
23
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT

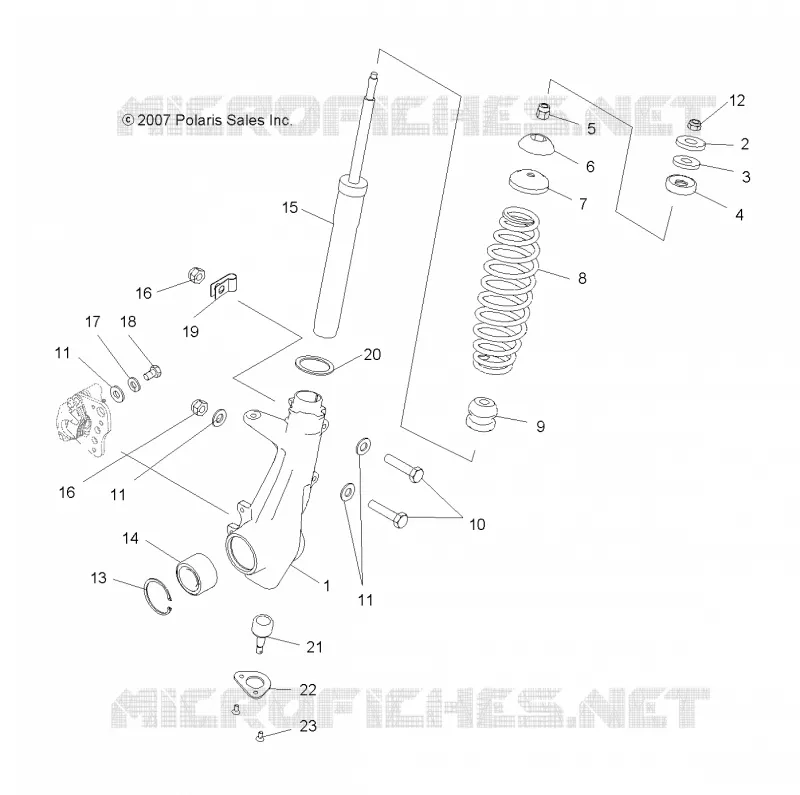

Find the detailed FRONT SUSPENSION STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
