1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
VALVES
5
Parts Diagram
Parts Catalog
THROTTLE BODY MOUNTING
by
STEERING POST
VALVES
1
2
3
4
5
6
7
8
9
10
1
2
3
3
4
4
5
6
7
8
9
10
1
Bolt
7518274
7519219
$18,89 Unit Price incl. VAT
2
ASM. ARM ROCKER
1202169
$204,74 Unit Price incl. VAT
3
RETAINER SPRING
5136932
$52,49 Unit Price incl. VAT
4
RETAINER LOCK
5910042
$10,49 Unit Price incl. VAT
5
Spring Valve
7043318
$52,49 Unit Price incl. VAT
6
Seal Valve Guide
5411895
$15,74 Unit Price incl. VAT
7
SEAT VALVE SPRING
5910329
$52,49 Unit Price incl. VAT
8
Head Cylinder
3021915
Not Available
9
VALVE INTAKE
5137265
$73,49 Unit Price incl. VAT
10
Valve Exhaust
5136258
5137264
$120,74 Unit Price incl. VAT

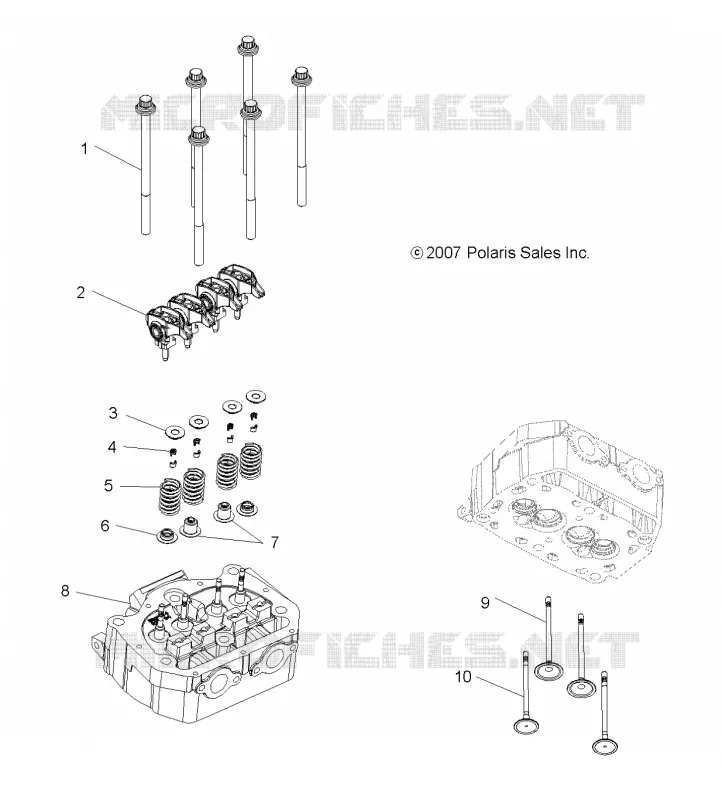

Find the detailed VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
