1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 TOURING EPS TRACTOR SP
4
Parts Catalog
ELECTRICAL, HARNESS
5

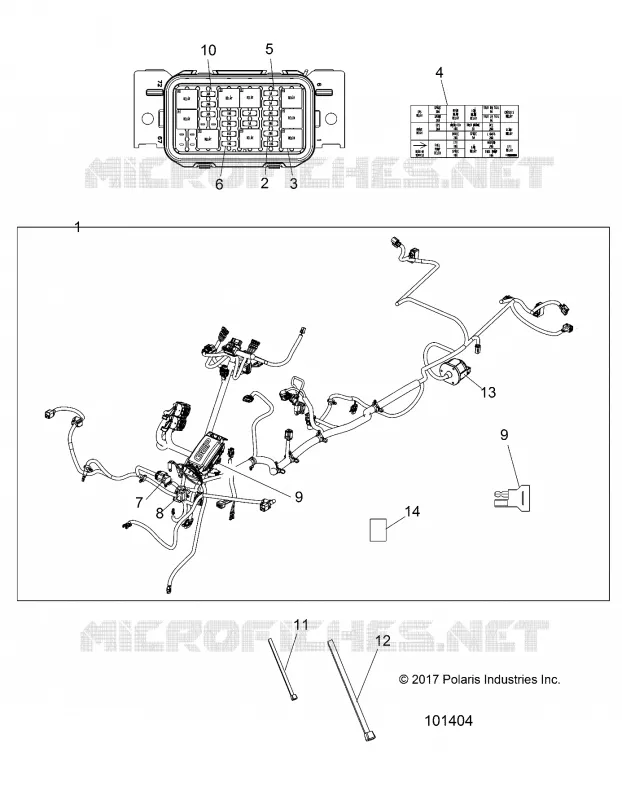

Parts Diagram
Parts Catalog
ELECTRICAL, GAUGES AND INDICATORS
by
ELECTRICAL, HEADLIGHTS
ELECTRICAL, HARNESS
1
2
3
4
5
6
13
8
9
9
10
11
12
13
14
1
2
3
3
4
5
5
5
6
6
13
8
9
10
11
12
12
12
13
13
14
1
HARNESS-MAIN SPM 570 TRCTR [INCL COVER]
2414017
Not Available
2
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
3
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
4
LABEL FUSE BOX
7186744
Not Available
5
FUSE-5A MINI BLADE
4011652
$20,99 Unit Price incl. VAT
6
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
7
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
8
BREAKER CIRCUIT 15 AMP SEALED
2411086
$83,99 Unit Price incl. VAT
9
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
10
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
11
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
12
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
13
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
14
CONNECTOR-SW OTTO K1 5 WIRE
4016237
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
