1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 TOURING EPS TRACTOR SP
4
Parts Catalog
FRONT SUSPENSION
5

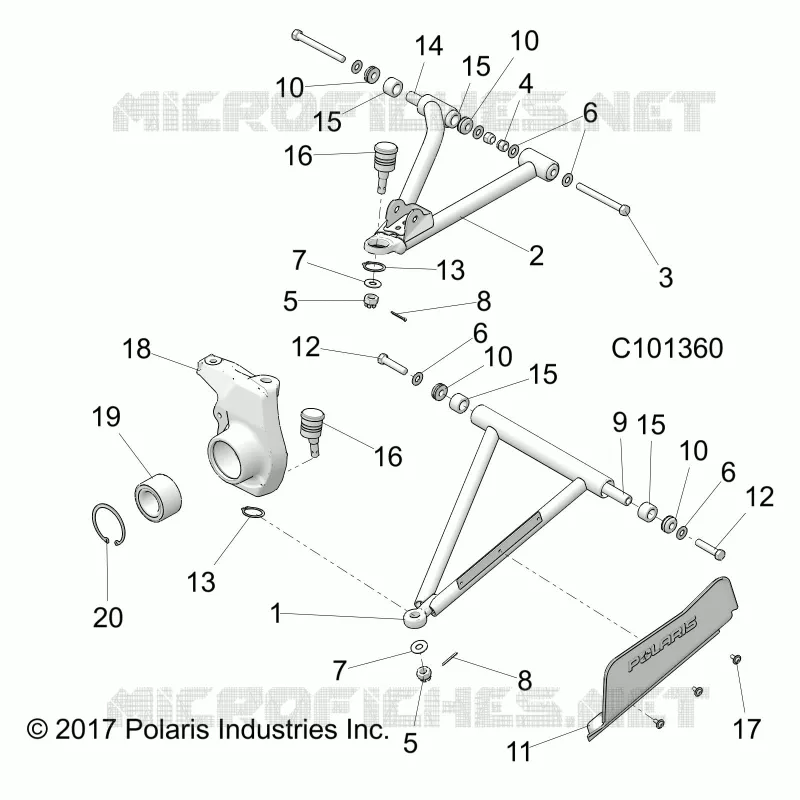

Parts Diagram
Parts Catalog
ENGINE, WATERPUMP IMPELLER AND COVER
by
REAR SUSPENSION
FRONT SUSPENSION
1
1
2
2
3
4
5
5
6
6
6
7
7
8
8
9
10
10
10
10
11
11
12
12
13
13
14
15
15
15
15
16
16
17
18
18
18
18
19
20
1
WELD-LCA S FRONT RH M.BLK
1023305458
Not Available
1
WELD-LCA S FRONT LH M.BLK
1023304458
Not Available
2
WELD-UCA S FRONT RH M.BLK
1023243458
Not Available
2
WELD-UCA S FRONT LH M.BLK
1023242458
Not Available
3
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
4
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
5
NUT-M12X1.5 CASTLE-OLIVE D
7547336
$20,99 Unit Price incl. VAT
6
WASHER
7556153
$3,66 Unit Price incl. VAT
7
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
8
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
9
SHAFT-A-ARM SEALED C-BORE
5141329
Not Available
10
ASM-PIVOT CAP SEALED M10
1543611
$10,49 Unit Price incl. VAT
11
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
11
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
12
SCR-3/8-24X1 3/4 HX GR5 P30 Y [TO 9/9/2019]
7520340
7521149
$6,29 Unit Price incl. VAT
13
RING-RETAINER EXTERNAL 1.188
7710533
$4,19 Unit Price incl. VAT
14
SHAFT-PIVOT SHORT M10 43MM
5141292
$8,39 Unit Price incl. VAT
15
BUSHING-STANDARD SUSP M10
5452233
$5,24 Unit Price incl. VAT
16
BALL-JOINT M12X1.50 TAPERED [TO 12/21/2020]
7061230
$73,49 Unit Price incl. VAT
17
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
18
ASM. STEERING KNUCKLE LH [INCL. KNUCKLE 19 20]
1824434
$561,74 Unit Price incl. VAT
18
KNUCKLE STEERING MACH LH
5139686
$125,99 Unit Price incl. VAT
18
KNUCKLE STEERING MACH RH
5139687
$325,49 Unit Price incl. VAT
18
ASM. STEERING KNUCKLE RH [INCL. KNUCKLE 19 20]
1824435
$535,49 Unit Price incl. VAT
19
BEARING-WHEEL 35X64X37MM
3514634
$73,49 Unit Price incl. VAT
20
RING-RETAINING 2.500 INTERNAL
7710507
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
