1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 TOURING EPS TRACTOR SP
4
Parts Catalog
WHEELS, REAR TIRE AND BRAKE DISC
5
Parts Diagram
Parts Catalog
WHEELS, FRONT TIRE AND BRAKE DISC
by
BODY, CLUTCH COVER

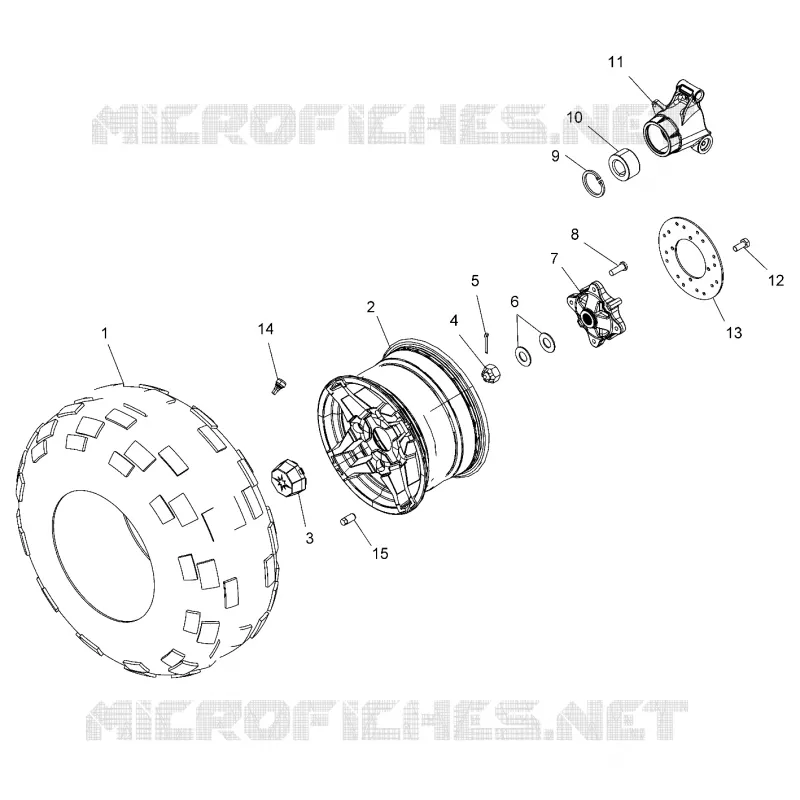

WHEELS, REAR TIRE AND BRAKE DISC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
1
TIRE 26X10-14 CU063 E-MARK
5415736
Not Available
2
RIM-REAR 14X7.5 NO MACH M.BLK
1522455458
1525392-458
$393,74 Unit Price incl. VAT
3
COVER HUB MATTE BLACK
5451374458
$36,74 Unit Price incl. VAT
4
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
5
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
6
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
7
Hub Rear Wheel Black
5135113
5143629
$157,49 Unit Price incl. VAT
8
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
9
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
10
BEARING-WHEEL 40X74X40MM
3514635
$73,49 Unit Price incl. VAT
11
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
12
SCR-HH-3/8-16X0.75 GR5 ZY3
7518903
$7,34 Unit Price incl. VAT
13
DISC-BRAKE REAR 8.625X.188
5248250
$141,74 Unit Price incl. VAT
14
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
15
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
