Parts Catalog

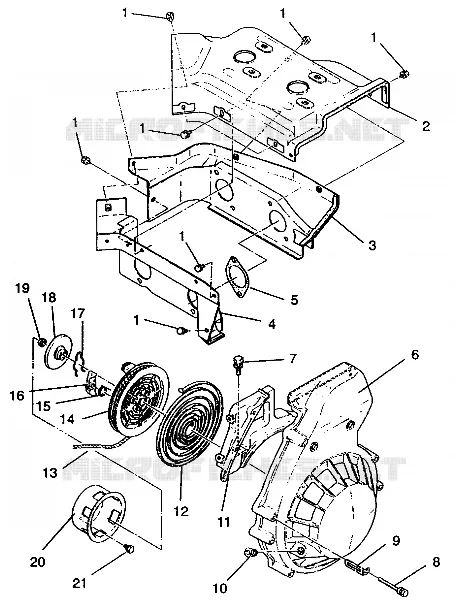

RECOIL STARTER ASSEMBLY SPORT SKS E940243 (49273627360034)
5
Parts Diagram
Parts Catalog
MAGNETO ASSEMBLY SPORT SKS E940243 (49273627360033)
by
RECOIL STARTER ASSEMBLY SPORT SKS E940243 (49273627360034)
1
1
1
1
1
1
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Not Available
2
BAFFLE CYL.#1
3084588
Not Available
3
BAFFLE CYL.#2
3083554
Not Available
4
BAFFLE CYL.#3
3084277
Not Available
5
GASKET INTAKE
3084027
Not Available
6
CASE STARTER
3083548
Not Available
6
RECOIL STARTER (Incl. 1-10)
3083547
Not Available
7
ASM. BOLT AND WASHER
3084225
7520778
$6,29 Unit Price incl. VAT
8
ASM. BOLT AND WASHER
3083550
7520782
$15,74 Unit Price incl. VAT
9
CLAMP
3083590
$7,34 Unit Price incl. VAT
10
BUSHING ROPE SLIDE
3083107
3040171
$6,08 Unit Price incl. VAT
11
HOUSING BLOWER #2
3083697
Not Available
12
SPRING SPIRAL
3083376
3023393
$278,24 Unit Price incl. VAT
13
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
14
ASM. REEL
3083377
$104,99 Unit Price incl. VAT
15
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
16
RATCHET
3083378
$36,74 Unit Price incl. VAT
17
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
18
PLATE FRICTION
3083464
Not Available
19
NUT FLANGE
3083381
Not Available
20
PULLEY STARTER
3083549
Not Available
21
BOLT (10)
3081665
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
