1
Engine displacement
0
2
Year
1994
3
Trim
EURO SPORT SKS - E940243
4
Parts Catalog

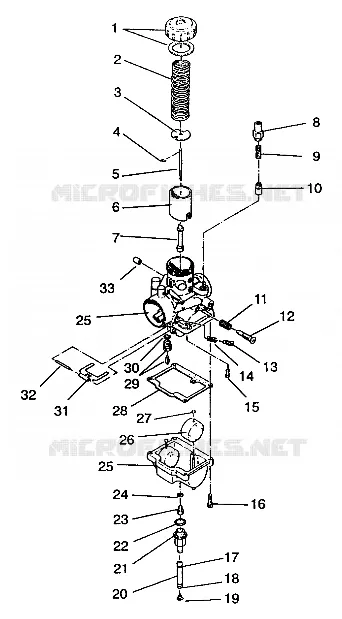

CARBURETOR SPORT SKS E940243 (49273627360030)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT SPORT SKS E940243 (49273627360029)
by
FUEL PUMP SPORT SKS E940243 (49273627360031)
CARBURETOR SPORT SKS E940243 (49273627360030)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE
3130329
Not Available
6
VALVE THROTTLE (2.5) (Deluxe)
3130466
Not Available
7
NEEDLE JET (Q-2) (400)
3130376
Not Available
8
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
9
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
10
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
11
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
12
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
13
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
14
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
15
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
16
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
17
CLAMP
7080236
$3,14 Unit Price incl. VAT
18
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
19
PLUG TRAP Substituted by 5431893
5431001
5431893
$26,24 Unit Price incl. VAT
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
22
O-RING
3130239
Not Available
23
JET MAIN HX.HD#180(10)
3130119
Not Available
24
WASHER
3130014
$3,14 Unit Price incl. VAT
25
CARBURETOR ASM.
3130459
Not Available
26
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
29
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
30
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
31
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
32
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
33
CAP
3130479
$31,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
