1
Engine displacement
0
2
Year
1994
3
Trim
EURO SPORT SKS - E940243
4
Parts Catalog
HOOD ASSEMBLY SPORT SKS E940243 (49273627360007)
5
Parts Diagram
Parts Catalog
NOSEPAN ASSEMBLY SPORT SKS E940243 (49273627360006)
by
HOOD

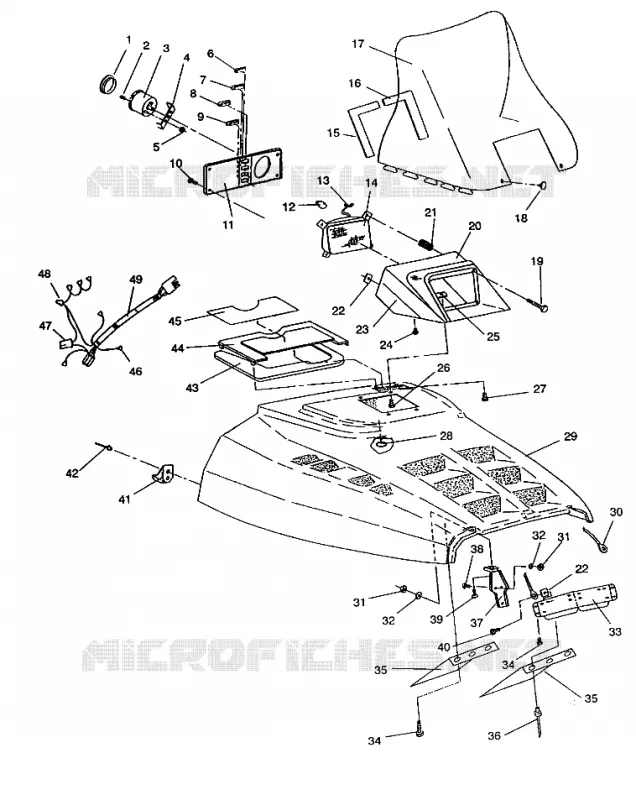

HOOD ASSEMBLY SPORT SKS E940243 (49273627360007)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
31
32
32
33
34
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
PLUG HOLE (SKS) (SKS)
7080444
Not Available
2
KNOB TRIP ODOMETER
3280103
$6,18 Unit Price incl. VAT
3
SPEEDO. (KILOMETER) (All Models)
3280097
Not Available
4
BRACKET (SPORT)
3280098
Not Available
5
NUT
3280063
Not Available
6
INDICATOR#OIL/BRK#WARN.
4040034
Not Available
7
INDICATOR #ACC#WARN. (Classic)
4040014
Not Available
8
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
9
PLUG INDIC.HOLE (400 & 650)
5430967
$12,59 Unit Price incl. VAT
10
SCREW SCKT.HD.CAP(10)
7512008
Not Available
11
BEZEL INSTRUMENT
5431064
Not Available
12
BULB H/L
4030028
Not Available
13
RETAINER H/L BULB
4032063
Not Available
14
HEADLIGHT ASM. (Incl. 20 22)
4032038
Not Available
15
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
16
PAD W/S LH BLACK
5810437
Not Available
17
WINDSHIELD HIGH
5431118
Not Available
18
RIVET (PLASTIC LOK)(50) Substituted by 7621509
7621505
7621509
$2,09 Unit Price incl. VAT
19
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
20
HSG INST TOP BLK
5430923070
Not Available
21
SPRING-ADJ
4032002
Not Available
22
NUT SPEED(10)
7670056
Not Available
23
HSG INST.BOTT.BLK.
5430922070
Not Available
24
SCREW(10)
7512009
Not Available
25
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
26
SCREW
7512283
$7,34 Unit Price incl. VAT
27
SCREW(10)
7511840
Not Available
28
O RING (HEAVY) (10) Substituted by 5410970
5410387
5410970
$2,09 Unit Price incl. VAT
29
HOOD ASM (SPORT 94)
2631573177
Not Available
30
CABLE HD.RETAINER (Classic & 400)
7080360
$47,24 Unit Price incl. VAT
31
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
32
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
33
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
34
SCREW(10)
7511861
Not Available
35
DEFLECTOR AIR
5222458
Not Available
36
RIVET-POP3/16X.402(.126-.250)
7621425
$2,09 Unit Price incl. VAT
37
HINGE ASM HD BLK
2635005067
Not Available
38
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
39
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
40
BOLT
7511989
Not Available
41
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
42
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
43
SEAL INTAKE
5810597
Not Available
44
PANEL ASM INTAKE MET.BLK. Substituted by 2620095-177
2620078177
Not Available
45
DECAL DASH WARNING [No Longer Available]
7072870
Not Available
46
HOUSING
4020052
Not Available
47
HOUSING
4020115
Not Available
48
HOUSING
4020114
Not Available
49
HARNESS HEADLIGHT
2460383
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
