Parts Catalog
LOWER CARBURETOR
5

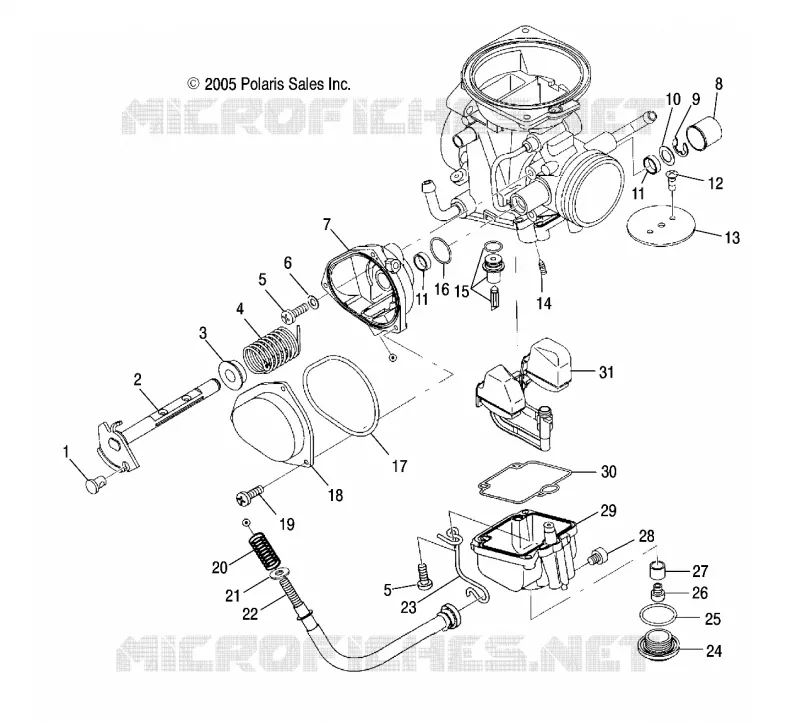

Parts Diagram
Parts Catalog
ENGINE, FUEL PUMP
by
ENGINE, STARTING MOTOR
LOWER CARBURETOR
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
2
THROTTLE SHAFT ASSM.
3130931
$120,74 Unit Price incl. VAT
3
RING
3130932
$3,14 Unit Price incl. VAT
4
SPRING
3130927
$10,49 Unit Price incl. VAT
5
SCREW
3130933
$4,19 Unit Price incl. VAT
6
WASHER
3130926
$7,34 Unit Price incl. VAT
7
CASE
3130925
$104,99 Unit Price incl. VAT
8
CAP
3130519
$19,94 Unit Price incl. VAT
9
E-Ring
3130518
$3,14 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SEAL
3130515
$20,99 Unit Price incl. VAT
12
Screw
3131475
$7,34 Unit Price incl. VAT
13
VALVE THROTTLE (120)
3130907
$83,99 Unit Price incl. VAT
14
Jet Pilot #37.5
3131711
$52,49 Unit Price incl. VAT
15
Valve Needle (1.5) (1.5)
3131359
$136,49 Unit Price incl. VAT
16
O-RING
3130928
$12,59 Unit Price incl. VAT
17
O-RING
3130929
$20,99 Unit Price incl. VAT
18
COVER
3130930
$68,24 Unit Price incl. VAT
19
Screw
3130924
$3,14 Unit Price incl. VAT
20
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
21
WASHER
3131296
$17,84 Unit Price incl. VAT
22
ASM-CABLE ADJUSTER
3131295
Not Available
23
CLIP
3131242
$52,49 Unit Price incl. VAT
24
BOLT BANJO
3130321
$41,99 Unit Price incl. VAT
25
O-RING
3130239
Not Available
26
MAIN JET #155 (#155) MAG & PTO
3130571
3130570
$16,79 Unit Price incl. VAT
27
RING
3130919
Not Available
28
SCREW
3130935
$10,49 Unit Price incl. VAT
29
FLOAT BODY ASSM.
3130923
$125,99 Unit Price incl. VAT
30
SEAL
3130917
$13,64 Unit Price incl. VAT
31
FLOAT ASM.
3130921
$125,99 Unit Price incl. VAT
