Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5

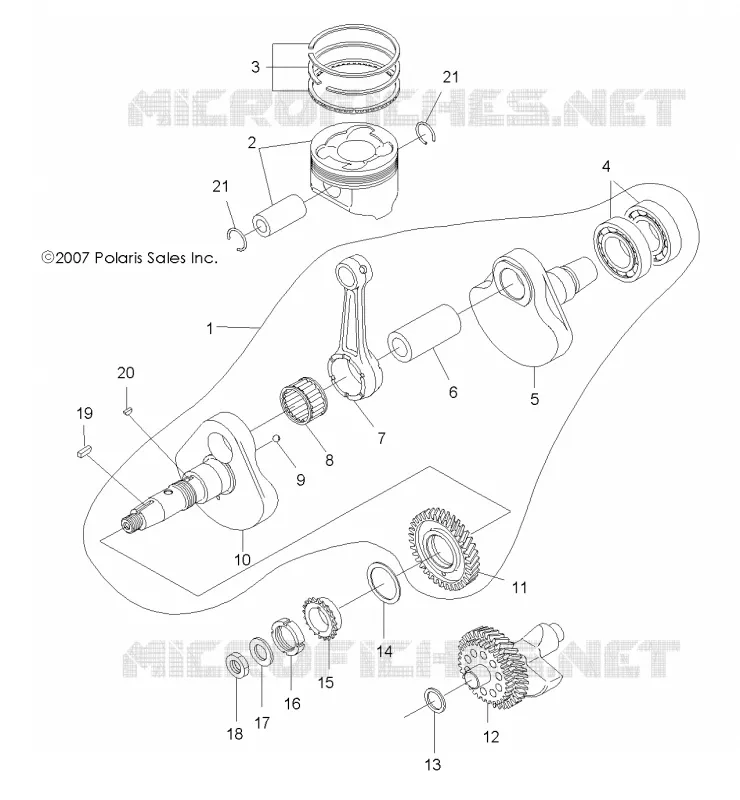

Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER AND HEAD
ENGINE, CRANKSHAFT AND PISTON
1
2
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
13
13
14
14
14
14
15
16
17
18
19
20
21
21
1
Asm. Crankshaft [Incl. 6-12]
3089570
$1 637,99 Unit Price incl. VAT
2
Asm. Piston Set [.50 O/S][Incl. 1][4x4][6x6]
3087223
$242,54 Unit Price incl. VAT
2
Asm. Piston Set [Std][Incl. 1][4x4][6x6]
3087221
Not Available
2
Asm. Piston Set [.25 O/S][Incl. 1][4x4][6x6]
3087222
$242,54 Unit Price incl. VAT
3
Piston Ring Set [.25 O/S][4x4][6x6]
3087225
$108,14 Unit Price incl. VAT
3
Piston Ring Set [.50 O/S][4x4][6x6]
3087226
$108,14 Unit Price incl. VAT
3
Piston Ring Set [Std][4x4][6x6]
3087224
$101,84 Unit Price incl. VAT
4
Bearing Ball
3085815
$74,54 Unit Price incl. VAT
5
Crankshaft 2 [4x4][6x6]
3085812
$1 238,99 Unit Price incl. VAT
6
Pin Crank
3085375
$204,74 Unit Price incl. VAT
7
Rod Connecting
3085813
Not Available
8
Bearing End Large
3085343
$121,79 Unit Price incl. VAT
9
BALL STEEL
3085024
$12,59 Unit Price incl. VAT
10
Crankshaft 1
3089678
Not Available
11
Gear 1 Balancer
3089245
Not Available
12
Shaft Balancer
3090031
Not Available
13
SPACER (1.0)
3084896
$12,59 Unit Price incl. VAT
13
SPACER (0.8)
3084895
$12,59 Unit Price incl. VAT
13
SPACER (1.2)
3084897
$12,59 Unit Price incl. VAT
14
SPACER (1.0)
3084893
$36,74 Unit Price incl. VAT
14
SPACER (1.2)
3084894
$36,74 Unit Price incl. VAT
14
SPACER
3240088
$19,94 Unit Price incl. VAT
14
SPACER (0.8)
3084892
$24,14 Unit Price incl. VAT
15
SPROCKET 1
3084882
Not Available
16
NUT SLIT
3085528
$68,24 Unit Price incl. VAT
17
Washer
3086767
Not Available
18
LOCKNUT
3083905
Not Available
19
KEY
3081447
Not Available
20
Key Woodruff
3240168
$47,24 Unit Price incl. VAT
21
CLIP(10)
3085534
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
