1
Engine displacement
440
2
Year
1994
3
Trim
EURO 440 - E942760
4
Parts Catalog

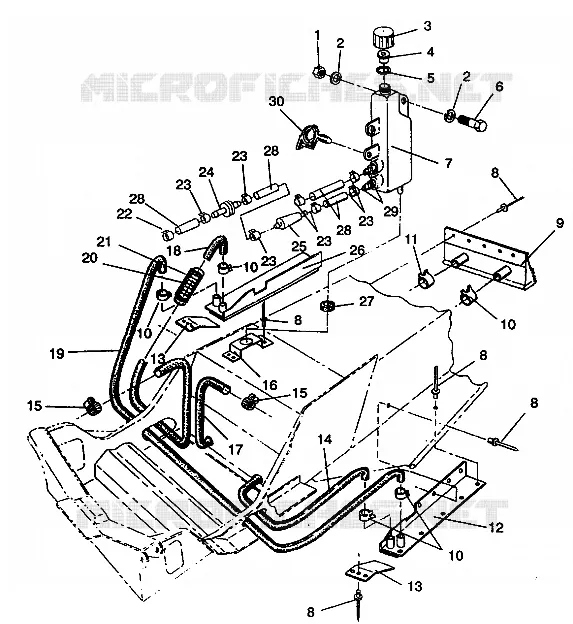

COOLING SYSTEM 440 E942760 AND 440 SKS E942560 (49273927390018)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 440 E942760 AND 440 SKS E942560 (49273927390011)
by
CHAINCASE ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390019)
COOLING SYSTEM 440 E942760 AND 440 SKS E942560 (49273927390018)
1
2
2
3
4
5
6
7
8
8
8
8
8
9
10
10
10
10
11
12
13
13
14
15
15
16
17
18
19
20
21
22
23
23
23
23
23
24
25
26
27
28
28
28
29
30
1
2
2
3
4
5
6
7
8
8
8
8
8
9
10
10
10
10
11
12
13
13
14
15
15
16
17
18
19
20
21
22
23
23
23
23
23
24
25
26
27
28
28
28
29
30
1
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
2
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
3
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
4
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
5
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
6
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
7
BOTTLE OVERFLOW Substituted by 5431733
5431054
$73,49 Unit Price incl. VAT
8
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
9
EXCHANGER WELD CTR.
2511225
Not Available
10
CLAMP-HOSE Substituted by 7080547
7080225
Not Available
11
CLAMP HOSE(10) Substituted by 7080564
7080498
7080844
$19,94 Unit Price incl. VAT
12
COOLING WELD LH
2511223
$152,76 Unit Price incl. VAT
13
GUARD COOL.EXT.
5222863
$42,30 Unit Price incl. VAT
14
HOSE-CROSSOVER
5410350
Not Available
15
CLAMP-HOSE (10) Substituted by 7080475
7080233
Not Available
16
BRACKET
5223985
Not Available
17
HOSE PUMP/CTR.EXT.
5410743
Not Available
18
HOSE ENG/SIDE EXT.
5410738
Not Available
19
HOSE CROSSOVER
5410557
Not Available
20
SPRING HOSE RETAINER
7041079
$7,97 Unit Price incl. VAT
21
TUBING CONVOL 1#X2.5#
5521242
Not Available
22
CLAMP-HOSE(10)
7080134
Not Available
23
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
24
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
25
FILTER WATER LINE Substituted by 2530024
2530010
Not Available
26
COOLING WELD RH
2511224
Not Available
27
GROMMET RUBBER
5410021
Not Available
28
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
29
FITTING OUTLET SINGLE
7052042
$13,64 Unit Price incl. VAT
30
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
