1
Engine displacement
440
2
Year
1994
3
Trim
EURO 440 - E942760
4
Parts Catalog

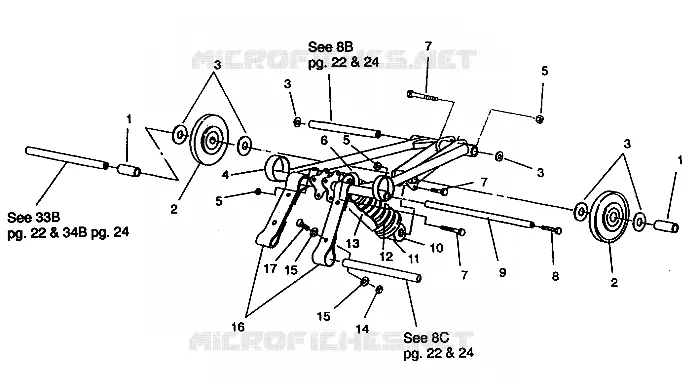

FRONT TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390025)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 440 SKS 0942560 (49273927390023)
by
REAR TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390026)
FRONT TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390025)
1
1
2
2
3
3
3
3
4
5
5
5
6
7
7
7
8
9
10
11
12
13
14
15
15
16
17
1
1
2
2
3
3
3
3
4
5
5
5
6
7
7
7
8
9
10
11
12
13
14
15
15
16
17
1
SPACER OUTER
5332784
Not Available
2
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
3
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
4
ARM FR.TORQUE BLK.
1540805067
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
BOLT(10)
7515432
Not Available
9
SHAFT MOUNTING
5010149
Not Available
10
SHOCK CTR.SUSP.
7041281
Not Available
11
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
12
SPRING-SHOCK SUSP
7041140
Not Available
13
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
14
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
15
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
16
STRAP LIMITER
5410397
Not Available
17
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
