1
Engine displacement
440
2
Year
1994
3
Trim
EURO 440 - E942760
4
Parts Catalog
MAGNETO ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390039)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390038)
by
RECOIL STARTER ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390040)

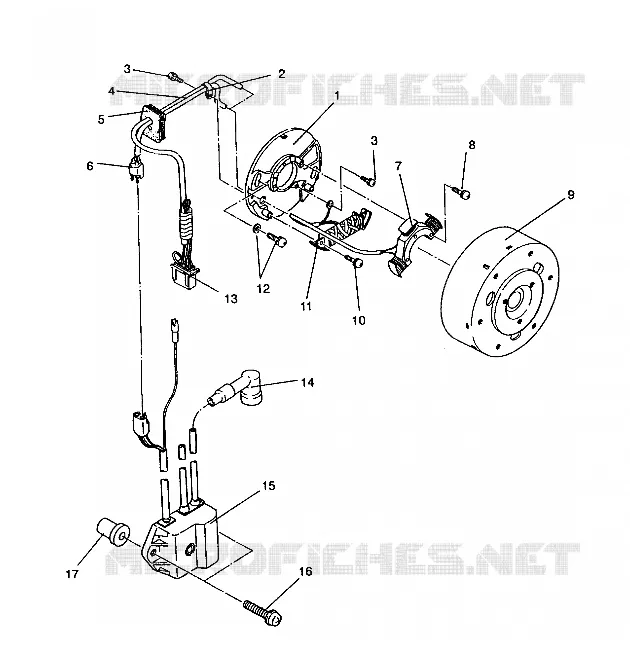

MAGNETO ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390039)
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
PLATE ASM.
3084286
Not Available
1
PLATE COIL
3083987
$524,99 Unit Price incl. VAT
2
CLAMP
3081296
Not Available
3
SCREW&WASHER (10)
3081260
Not Available
4
HARNESS WIRE
3084289
Not Available
5
GROMMET
3082969
Not Available
6
COUPLER
3083909
$41,99 Unit Price incl. VAT
7
STATOR 1
3083991
$535,49 Unit Price incl. VAT
8
SCREW(10)
3082365
$6,29 Unit Price incl. VAT
9
FLYWHEEL
3084287
Not Available
10
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
11
COIL EXCITER
3083984
$173,24 Unit Price incl. VAT
12
SCREW&WASHER (10)
3082175
Not Available
13
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
14
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
15
COIL IGNITION
3084288
Not Available
16
SCREW AND WASHER
3083784
$4,19 Unit Price incl. VAT
17
NUT-RUBBER
3083240
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
