Engine displacement
570
2
Year
2016
3
Trim
ACE 570 EFI
4
Parts Catalog

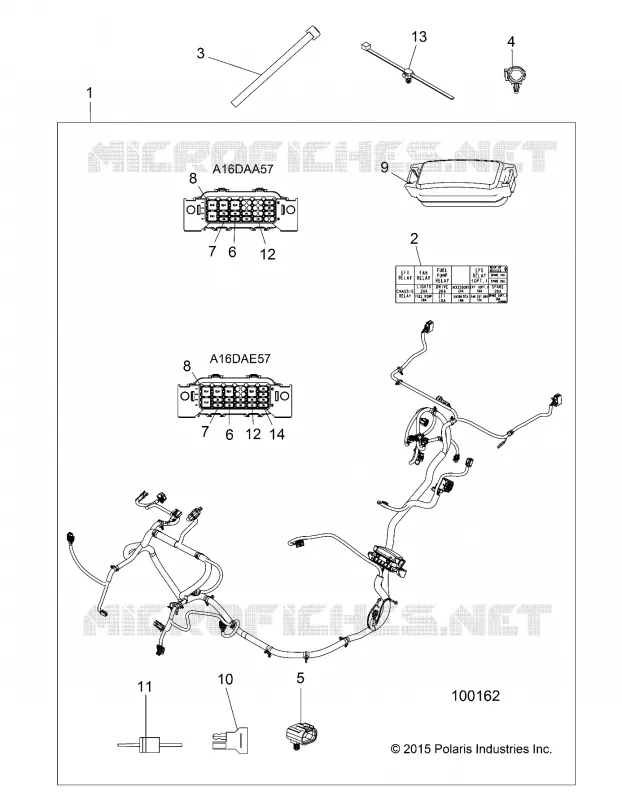

ELECTRICAL, WIRE HARNESS
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS
by
CAM CHAIN AND SPROCKET
ELECTRICAL, WIRE HARNESS
10
11
12
12
13
14
1
HARNESS CHASSIS EPS
2413251
$1 580,24 Unit Price incl. VAT
1
HARNESS CHASSIS [A7][A5][L2]
2413250
$1 622,24 Unit Price incl. VAT
2
LABEL FUSE BOX
7179666
Not Available
3
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
4
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
5
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
6
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
7
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
8
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
9
COVER- FUSE BOX 48 WAY
4015011
$115,49 Unit Price incl. VAT
10
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
11
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
12
BREAKER CIRCUIT 15 AMP.
4011406
$125,99 Unit Price incl. VAT
13
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
14
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
