Parts Catalog
ENGINE, ENGINE AND TRANSMISSION MOUNTING
5

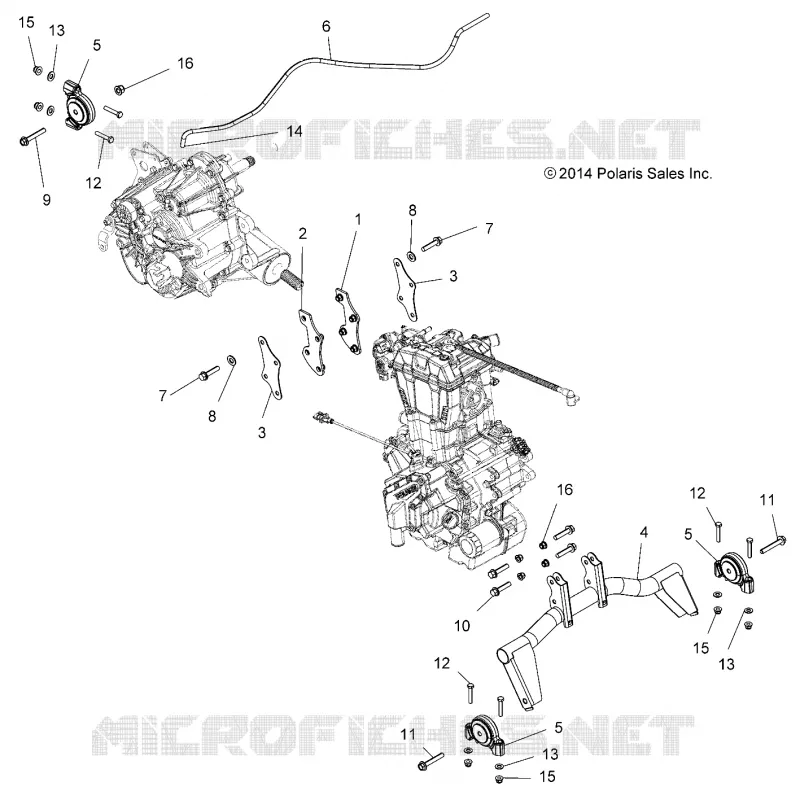

Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
by
ENGINE, VALVE COVER
ENGINE, ENGINE AND TRANSMISSION MOUNTING
1
TRANSMISSION INNER LEFT
1018420
1025909
$120,74 Unit Price incl. VAT
2
TRANSMISSION INNER RIGHT
1018421
1025910
$120,74 Unit Price incl. VAT
3
BRKT-COUPLER TRANS OUTER
5255321
$19,94 Unit Price incl. VAT
4
MOUNT ENGINE FRONT E-COAT
1021995329
$246,74 Unit Price incl. VAT
5
MOUNT-ISOLATOR DRIVELINE
1332955
$136,49 Unit Price incl. VAT
6
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
7
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
SCR-HXFL-M10X1.25X60 8.8 ZOD
7518563
$5,76 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X40 8.8 ZOD
7519332
$10,49 Unit Price incl. VAT
11
SCR-HXFL-M10X1.25X60 10.9 ZOD
7518826
$9,44 Unit Price incl. VAT
12
SCREW-HH M8X1.25X45 8.8 ZOD
7519097
$3,14 Unit Price incl. VAT
13
NUT-5/16-PAL-Y
7547030
$9,44 Unit Price incl. VAT
14
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
15
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
16
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
