Parts Catalog
STEERING
5

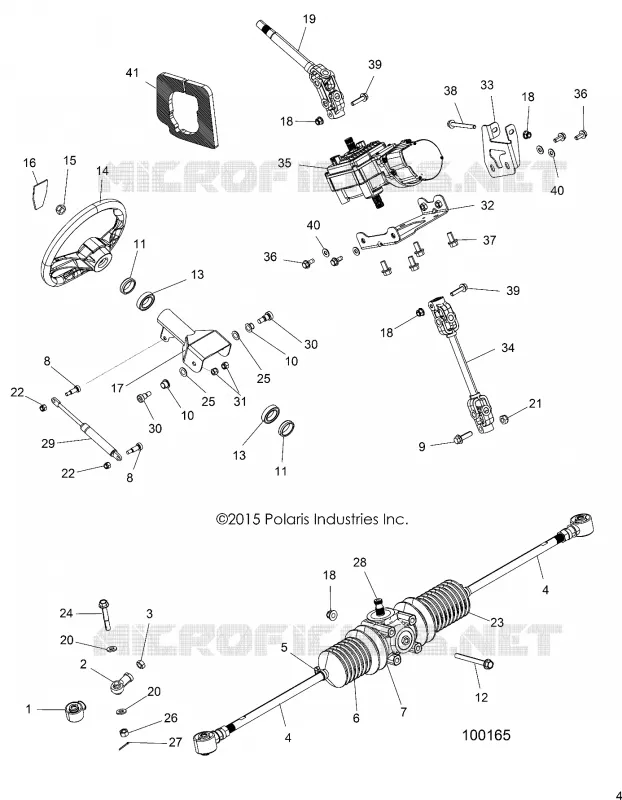

Parts Diagram
Parts Catalog
ENGINE, WATERPUMP IMPELLER AND COVER
by
WHEELS, FRONT TIRE AND BRAKE DISC
STEERING
8
8
9
10
10
11
11
12
13
13
14
15
16
17
18
18
18
18
19
20
20
21
22
22
23
24
25
25
26
27
28
29
30
30
31
32
33
34
35
36
36
37
38
39
39
40
40
41
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BELLOWS CLAMP SMALL
7080978
$4,19 Unit Price incl. VAT
6
BOOT STEERING RACK
5415572
$89,24 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
9
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
10
BUSHING TILT STEERING
5439154
$6,29 Unit Price incl. VAT
11
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
12
SCR-HXFL M8X1.25X80 8.8 ZOD
7519217
$3,14 Unit Price incl. VAT
13
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
14
WHEEL STEERING [TO 2/1/2023]
1824014
2209704
$248,84 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
CAP-STEERING WHEEL BLK [AJ][BJ]
5450255070
$36,74 Unit Price incl. VAT
17
ASM. TUBE PIVOT BLACK [INCL. 4]
1017621
$257,24 Unit Price incl. VAT
18
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
19
SHAFT STEERING EPS UPPER
1824286
$293,99 Unit Price incl. VAT
20
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
23
BOOT STEERING RACK
5415572
$89,24 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
25
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
26
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
ASM. GEAR BOX STEERING [INCL. 2-7 23]
1824019
$1 034,24 Unit Price incl. VAT
29
ASM. SHOCK OIL LOCKING
7044420
$125,99 Unit Price incl. VAT
30
SCR-SHS-M10X1.5-M12X16 RIE
7519355
$19,94 Unit Price incl. VAT
31
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$7,34 Unit Price incl. VAT
32
BRACKET BASE EPS
1020912329
$178,49 Unit Price incl. VAT
33
BRACKET EPS LH
5260034329
$73,49 Unit Price incl. VAT
34
SHAFT STEERING EPS LOWER
1824287
$241,49 Unit Price incl. VAT
35
ASM. POWER STEERING
2413339
$3 291,74 Unit Price incl. VAT
36
BOLT-M8X1.25X20 HXHDFLG W/PTCH
7518450
$3,14 Unit Price incl. VAT
37
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
38
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
39
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
40
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
41
FOAM SHIELD
5814248
$52,49 Unit Price incl. VAT
