1
Engine displacement
0
2
Year
1993
3
Trim
EURO STORM - E932770
4
Parts Catalog

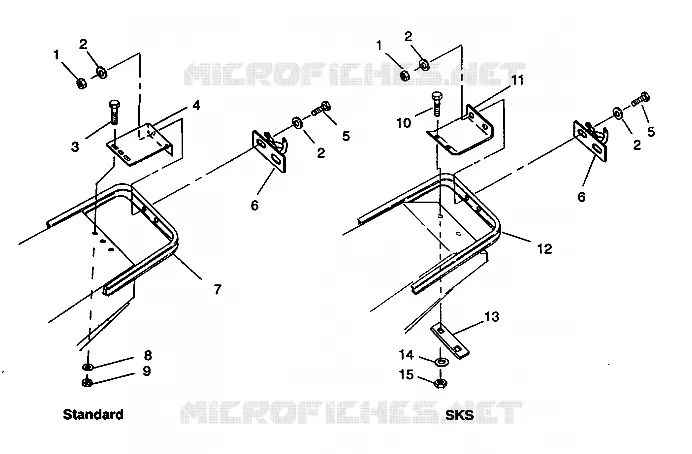

HITCH ASSEMBLY Storm E940782 and Storm SKS E940582 (49274427440002)
5
Parts Diagram
Parts Catalog
TUNNEL ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440001)
by
HOOD ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440007)
HITCH ASSEMBLY Storm E940782 and Storm SKS E940582 (49274427440002)
1
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
2
WASHER
7555806
$1,56 Unit Price incl. VAT
3
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
4
PLATE HITCH MT BLK.
5220942067
$14,58 Unit Price incl. VAT
5
SCR-HH-3/8-16X1.75 GR5 ZY3
7515521
$7,34 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
BUMPER REAR BLK.
5224347067
Not Available
8
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
11
BRKT HITCH
5222605067
Not Available
12
DESC NOT_AVAILABLE
2670123
Not Available
13
PLATE BACKING
5211122067
Not Available
14
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
15
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
