1
Engine displacement
0
2
Year
1993
3
Trim
EURO STORM - E932770
4
Parts Catalog

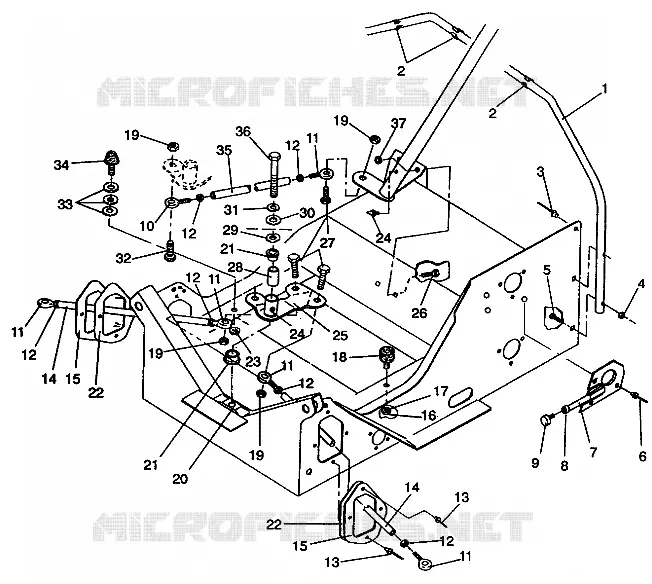

STEERING ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440018)
5
Parts Diagram
Parts Catalog
STEERING
by
CHAINCASE ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440019)
STEERING ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440018)
1
DESC NOT_AVAILABLE
1011998
Not Available
2
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
3
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
4
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
6
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
7
LIMITER TORQUE PTO
1011997067
Not Available
8
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
9
STOP RUBBER TORQUE
3110037
Not Available
10
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
11
ROD END RH Substituted by 7060167
7060152
7060167
$99,74 Unit Price incl. VAT
11
ROD END LH Substituted by 7060166
7060151
7060166
$99,74 Unit Price incl. VAT
12
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
12
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
13
POP RIVET(50)
7621303
Not Available
14
ROD TIE BLACK
5332713067
Not Available
14
ROD-TIE BLK. Substituted by 5020636-067 (Storm)
5020664067
Not Available
15
PLATE RH BOOT SEAL
5210904
Not Available
16
NUT(10)
7546803
Not Available
17
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
18
DAMPENER RUBBER ENG.8M
3110035
Not Available
19
Nut
7542403
Not Available
20
BLOCK CTR.STRG.
5130889
Not Available
21
BUSHING
3563907
$7,34 Unit Price incl. VAT
22
BOOT-TIE ROD
5410328
Not Available
23
NUT(10)
7542323
$3,66 Unit Price incl. VAT
24
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
25
STEERING WELD CTR.
1822106067
$211,56 Unit Price incl. VAT
26
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
27
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
28
BUSHING SPACER
5010282
Not Available
29
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
30
WASHER
7555721
$2,09 Unit Price incl. VAT
31
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
32
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
33
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
34
DAMPENER RUBBER ENG.5/16
3110036
Not Available
35
ROD DRAG LINK
5333144
Not Available
36
BOLT(10)
7512679
Not Available
37
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
