PISTON CRANKSHAFT STORM E940782 AND STORM SKS E940582 (49274427440034)
5
Parts Diagram
Parts Catalog
WATER PUMP STORM E940782 AND STORM SKS E940582 (49274427440033)
by
RECOIL STARTER ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440039)

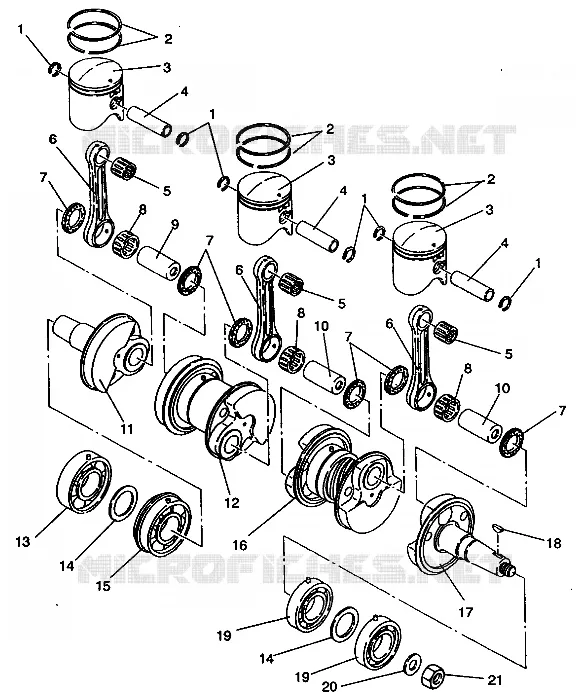

PISTON CRANKSHAFT STORM E940782 AND STORM SKS E940582 (49274427440034)
1
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
2
RING PISTON (.020 O/S) (.020 Oversize)
3084344
Not Available
2
RING PISTON STD. (Standard)
3084342
$68,24 Unit Price incl. VAT
2
RING PISTON (.010 O/S) (.010 Oversize)
3084343
Not Available
3
PUMP OIL (Incl.1 2 7-12 18)
3084557
$230,99 Unit Price incl. VAT
3
PUMP FUEL (Incl. 1-3)
3084556
Not Available
3
GEAR SMALL
3084558
Not Available
4
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
5
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
6
ROD CONNECTING
3084543
Not Available
7
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
8
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
9
PIN CRANK
3240085
Not Available
10
PIN-CRANK 2
3083254
Not Available
11
CRANKSHAFT 3
3084542
Not Available
12
CRANKSHAFT PTO SIDE (PTO) (Incl. 9)
3084541
Not Available
13
BEARING BALL
3084546
Not Available
14
SPACER
3240088
$19,94 Unit Price incl. VAT
15
BEARING BALL
3084545
Not Available
16
CRANKSHAFT CTR. (Center) (Incl. 3 6-10)
3084539
Not Available
16
CRANKSHAFT MAG.SIDE (Mag) (Incl. 10)
3084540
$455,69 Unit Price incl. VAT
17
CRANKSHAFT CPL. (Incl.6-17 19)
3084537
Not Available
17
CRANKSHAFT 1
3084538
Not Available
18
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
19
BEARING BALL
3084544
Not Available
20
WASHER
3084457
Not Available
21
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
