1
Engine displacement
0
2
Year
1995
3
Trim
RXL - 0956168
4
Parts Catalog

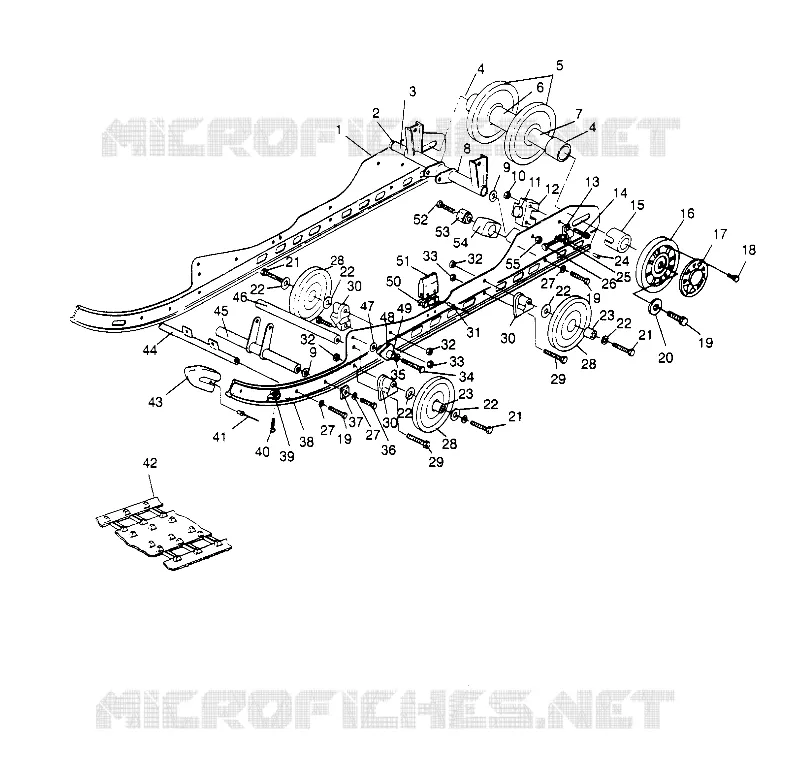

SUSPENSION ASSEMBLY RXL 0956768 (4930783078B010)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY RXL 0956768 (4930783078B009)
by
FRONT TORQUE ARM RXL 0956768 (4930783078B012)
SUSPENSION ASSEMBLY RXL 0956768 (4930783078B010)
1
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
21
21
22
22
22
22
22
22
23
23
24
25
26
27
27
27
28
28
28
29
29
30
30
30
31
32
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
21
21
22
22
22
22
22
22
23
23
24
25
26
27
27
27
28
28
28
29
29
30
30
30
31
32
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
RAIL ASM RH #XTRA# (Incl. 9 36 37 53)
1540885
Not Available
1
RAIL ASM LH #XTRA# (Incl. 9 36 37 53)
1540884
Not Available
2
O-RING
5410953
Not Available
3
SHAFT R.TORQUE ARM
5020786
Not Available
4
SPACER INNER IDLER
5010169
Not Available
5
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
6
SPACER CTR IDLER
5010168
Not Available
7
SHAFT IDLER
5020722
Not Available
8
ARM R.PIVOT BLK Substituted by 1540971-067
1540891067
Not Available
9
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
10
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
11
BUMPER R.PIVOT ARM
5410937
$9,23 Unit Price incl. VAT
12
BLOCK R.PIVOT ARM STOP
5131111
Not Available
13
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
14
SCREW(10)
7515156
$7,34 Unit Price incl. VAT
15
SPACER-IDLER-OUTER
5332641
Not Available
16
WHEEL OUTER W/HOLES Substituted by 1594021 (600 SE)
1594035
Not Available
17
COVER IDLER WHL. (600 SE)
5220442
$41,04 Unit Price incl. VAT
18
SCREW WHL.COVER(SE)(10)
7511853
Not Available
19
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
20
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
21
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
22
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
23
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
24
RIVET
7621501
$4,19 Unit Price incl. VAT
25
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
26
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
27
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
28
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
29
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
30
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
31
RIVET (50)
7621488
Not Available
32
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
33
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
34
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
35
BOLT(10)
7515538
$11,54 Unit Price incl. VAT
36
BOLT(10)
7515535
Not Available
37
BOSS BOLT HEAD
5131112
$36,74 Unit Price incl. VAT
38
SLIDER WIDE BLK.(2)
5521275
Not Available
39
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
40
SCR-HXFL-1/4-20X1.125 GR5 ZY3
7515153
$7,34 Unit Price incl. VAT
41
RIVET
7621435
$2,09 Unit Price incl. VAT
42
TRACK 121# DEEPWIPER STD.CORD
5410920
Not Available
43
COVER RAIL TIP Substituted by 5433005
5431421
Not Available
44
SHAFT LIMITER STRAP BLK.
1012267067
Not Available
45
ARM SHOCK PIVOT BLK.
1540889067
Not Available
46
SHAFT R.SHOCK BRKT.
5020649
Not Available
47
WASHER(10)
7555743
Not Available
48
BLOCK SPRING SLIDER
5431924
$18,89 Unit Price incl. VAT
49
BUSHING
5010332
$15,74 Unit Price incl. VAT
50
BRKT BUMPER SUPPORT
5240946
Not Available
51
BUMPER JOUNCE RAIL LT
5811065
Not Available
52
BOLT
7515537
$15,74 Unit Price incl. VAT
53
MOUNT BUMPER
5131113
$52,49 Unit Price incl. VAT
54
BUMPER PIVOT ARM
5410925
$26,24 Unit Price incl. VAT
55
Nut
7542403
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
