1
Engine displacement
0
2
Year
1995
3
Trim
RXL - 0956168
4
Parts Catalog
EFI PARTS RXL 0956768 (4930783078D002)
5
Parts Diagram
Parts Catalog
THROTTLE ASSEMBLY RXL 0956768 (4930783078D001)
by
NOSEPAN ASSEMBLY RXL 0956768 (4930783078A008)

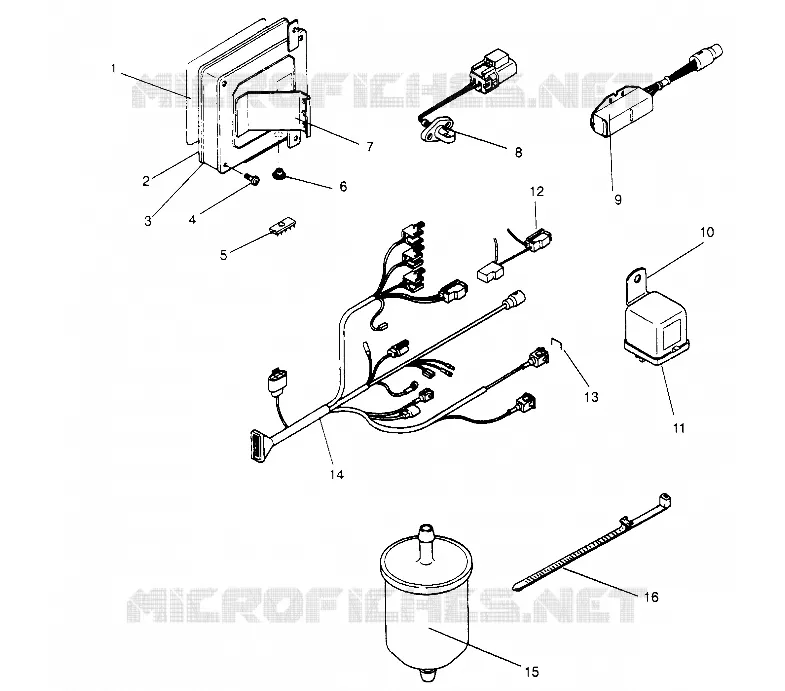

EFI PARTS RXL 0956768 (4930783078D002)
1
2
2
2
2
2
2
2
2
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
1
2
2
2
2
2
2
2
2
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
1
DECAL EFI COVER [No Longer Available]
7072909
Not Available
2
ECU (RXL-TRNG #NO ROM#) Substituted by 2410029-2 (Touring)(Incl. 5 7 8)
2410029
Not Available
2
COVER ECU (93 RXL)
3084507
$43,56 Unit Price incl. VAT
2
ECU (RXL-#NO ROM#) Substituted by 3084505
2410028
Not Available
3
GASKET ECU
3084508
Not Available
4
SCREW
3084388
Not Available
5
CHIP ROM HI-ELEV(94RXL) (High Elevation; Ethanol)
4040042
$264,06 Unit Price incl. VAT
5
CHIP ROM(95#650#HI-ELV.)
4040058
$264,06 Unit Price incl. VAT
5
CHIP ROM (650 EFI)
4040057
Not Available
5
CHIP ROM (94-RXL) (Improved starting; Ethanol)
4040044
$264,06 Unit Price incl. VAT
6
PLUG RUBBER
3084389
Not Available
7
COVER BOT.W/BRKT.
3084114
Not Available
8
SENSOR AIR TEMP.
3084105
Not Available
9
RESISTOR DROPPING
3084617
Not Available
10
BRACKET RELAY
3084112
Not Available
11
RELAY #1
3084108
Not Available
11
RELAY #2
3084109
Not Available
12
KIT ENRICHMENT Substituted by 2460364
3084397
Not Available
13
CLIP WIRE
3084488
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
FILTER FUEL ASM.
3084110
Not Available
16
CLIP BAND (A.T.S.)
3084111
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
