HOOD ASSEMBLY RXL 0956768 (4930783078A010)
5
Parts Diagram
Parts Catalog
NOSEPAN ASSEMBLY RXL 0956768 (4930783078A009)
by
DECALS RXL 0956768 (4930783078A012)

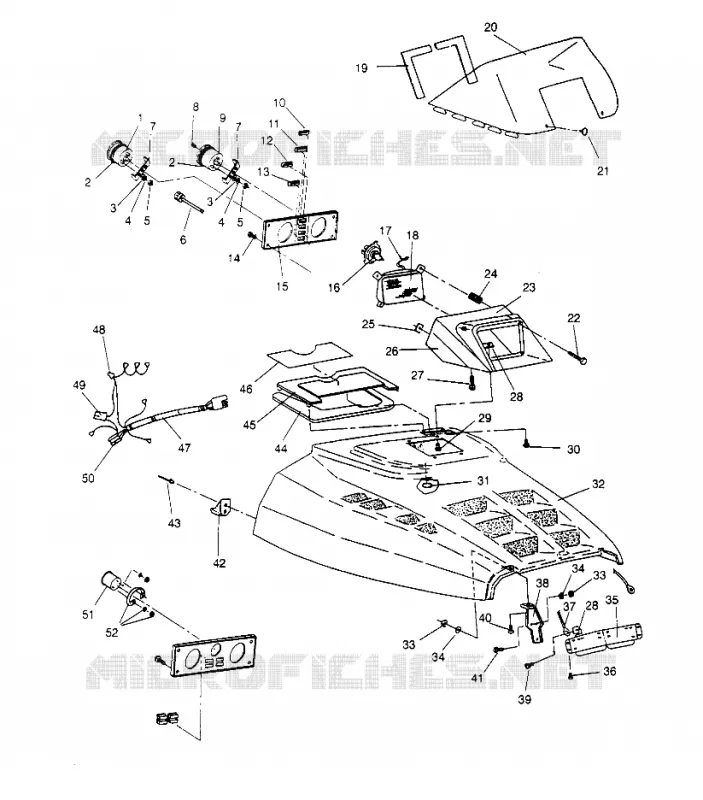

HOOD ASSEMBLY RXL 0956768 (4930783078A010)
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
TACH 3P BACKLIT (Incl. 4 5)
3280192
Not Available
1
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
2
CUSHION TACH/SPEEDO RUBBER
3280151
Not Available
3
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
4
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
5
NUT
3280158
Not Available
6
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
7
BRKT SPEEDO/TACH
3280153
Not Available
8
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
9
SPEEDO ASM 120MPH.BACKLIT (Incl. 3 4 6 12) (US)
3280188
Not Available
10
INDICATOR#TEMP#WARN.
4040011
$62,99 Unit Price incl. VAT
11
INDICATOR#OIL/BRK#WARN.
4040034
Not Available
12
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
13
INDICATOR #ACC#WARN. (Classic)
4040014
Not Available
14
SCREW SCKT.HD.CAP(10)
7512008
Not Available
15
BEZEL INSTRUMENT (Classic)
5431308
Not Available
16
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
17
RETAINER H/L BULB
4032063
Not Available
18
HEADLIGHT ASM.
4032040
Not Available
19
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
19
PAD W/S LH BLACK
5810437
Not Available
20
WINDSHIELD LOW BLK. (Storm)
5431447
Not Available
21
RIVET (PLASTIC LOK)(50) Substituted by 7621509
7621505
7621509
$2,09 Unit Price incl. VAT
22
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
23
HOUSING TOP MODIFIED (Touring)
5431364
Not Available
24
SPRING-ADJ
4032002
Not Available
25
NUT SPEED(10)
7670056
Not Available
26
HSG INST.BOTT.BLK.
5430922070
Not Available
27
SCREW(10)
7512009
Not Available
28
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
29
SCREW
7512283
$7,34 Unit Price incl. VAT
30
SCREW(10)
7511840
Not Available
31
O RING (HEAVY) (10) Substituted by 5410970
5410387
5410970
$2,09 Unit Price incl. VAT
32
HOOD ASM LIQ BLK.MET.
2631574177
Not Available
33
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
34
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
35
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
36
SCREW
7511858
$7,34 Unit Price incl. VAT
37
CABLE HOOD RETAINER (650)
7080368
$19,94 Unit Price incl. VAT
38
HINGE ASM HD BLK
2635005067
Not Available
39
BOLT
7511989
Not Available
40
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
41
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
42
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
43
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
44
SEAL INTAKE
5810597
Not Available
45
PANEL ASM INTAKE MET.BLK. Substituted by 2620095-177
2620078177
Not Available
46
DECAL DASH WARNING Substituted by 7075457
7074883
Not Available
47
HARNESS HEADLIGHT(RXL) (Touring)
2460436
Not Available
48
HOUSING
4020052
Not Available
49
HOUSING
4020114
Not Available
50
HOUSING
4020115
Not Available
51
INDICATOR FUEL LEVEL
3280118
$85,88 Unit Price incl. VAT
52
HDWE.PKG FUEL INDIC.
3280119
$39,78 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
