1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog

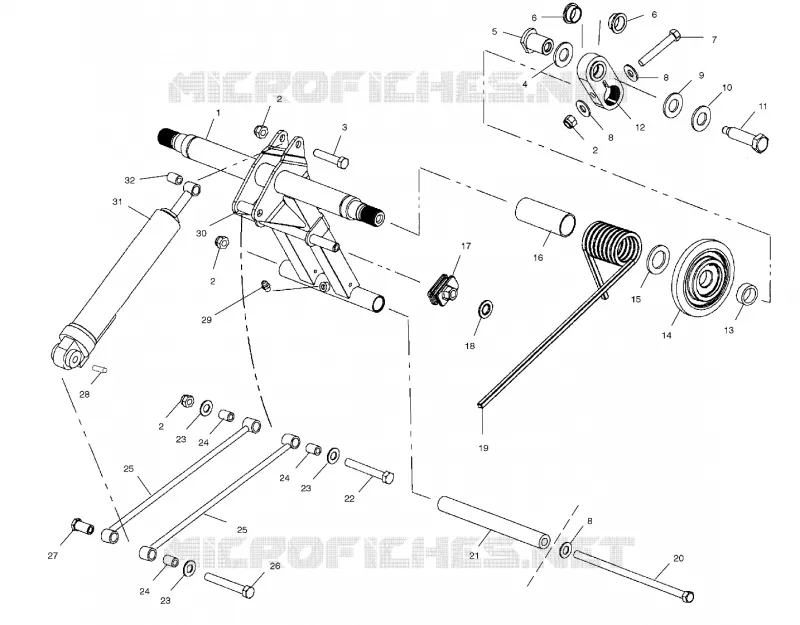

REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
SHOCK (IFS)
REAR TORQUE ARM
1
WELD-REAR TORQUE ARM RED
1541561293
Not Available
2
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
3
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
4
WASHER THRUST
7555945
$11,54 Unit Price incl. VAT
5
SHAFT-ARM
5333758
Not Available
6
BUSHING-ARM
3514331
$34,64 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
WASHER
7555806
$1,56 Unit Price incl. VAT
9
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
10
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
11
BOLT
7517435
$22,56 Unit Price incl. VAT
12
ARM ASM RTA (Incl. 5)
1541461
$178,49 Unit Price incl. VAT
13
SPACER WHEEL
5132388
Not Available
14
WHEEL ASM PLAIN BLK.
1590278
Not Available
15
WASHER THRUST
7555787
$10,49 Unit Price incl. VAT
16
SLEEVE TORSION SPRING
5431923
$11,54 Unit Price incl. VAT
17
ROLLER SPRING ADJUSTABLE SQUARE
5432983
$19,94 Unit Price incl. VAT
18
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
19
SPRING-TORS .405SQ/77 LH BLK
7041940067
$209,99 Unit Price incl. VAT
19
SPRING-TORS .405SQ/77 RH BLK
7041941067
$209,99 Unit Price incl. VAT
19
SPRING TORSION .359/77 BLACK RH [STD]
7041630067
7041630-329
$209,99 Unit Price incl. VAT
19
SPRING TORSION .359/77 BLACK LH [STD]
7041629067
7041629-329
$209,99 Unit Price incl. VAT
19
SPRING TORSION .375 SQ./77 RH BLACK
7041943067
7041943-329
$209,99 Unit Price incl. VAT
19
SPRING TORSION .375 SQ./77 LH BLACK
7041942067
7041942-329
$220,49 Unit Price incl. VAT
20
SCREW
7517232
$36,74 Unit Price incl. VAT
21
SHAFT .740X.390X7.055 6066
5333873
Not Available
22
BOLT
7515514
$13,64 Unit Price incl. VAT
23
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
24
BUSHING
5132391
$13,64 Unit Price incl. VAT
25
SHOCK ROD 12.850 BLK
1541479067
$89,24 Unit Price incl. VAT
26
SCREW
7517851
$11,54 Unit Price incl. VAT
27
BUSHING NUT.616X1.12X.875
5132390
$40,94 Unit Price incl. VAT
28
SLEEVE .385X.560X1.30
5333907
$27,29 Unit Price incl. VAT
29
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
30
SPACER .397X.562X1.250
5333904
Not Available
31
SHOCK R/T FOX PPS
7041846
Not Available
32
Bushing .385 ID
5010422
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
