1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog

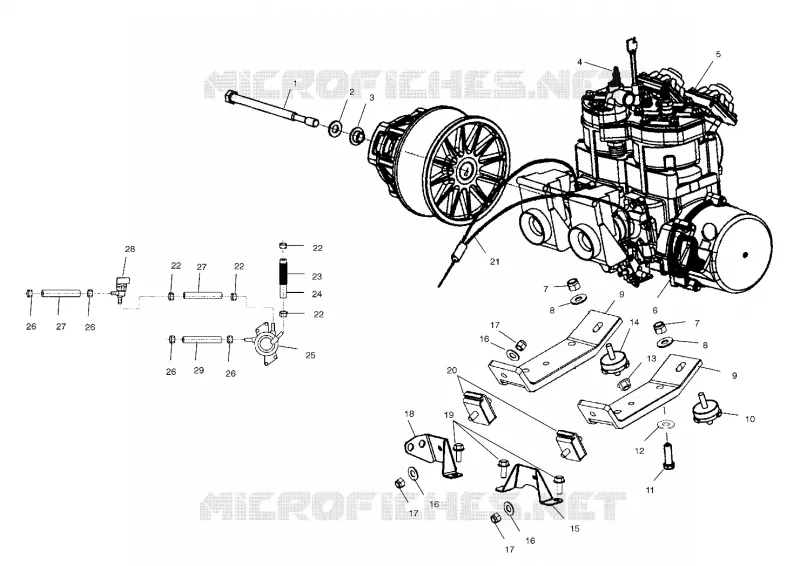

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
CRANKCASE
ENGINE MOUNTING
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER-BLVL .567X1.125X.118-Y
7556003
$11,54 Unit Price incl. VAT
3
WASHER CLUTCH RET.
5131872
5132441
$41,99 Unit Price incl. VAT
4
SP.PLUG CHAMPION RN57Y CC (8)
3070190
$7,34 Unit Price incl. VAT
5
Engine S50-44-02 NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warrant
2201936
Not Available
6
HANDLE RECOIL Substituted by 5431499-070
5431499
$26,24 Unit Price incl. VAT
7
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
8
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
9
Strap Engine Mount LH
5245465
$119,16 Unit Price incl. VAT
9
Strap Engine Mount RH
5245474
Not Available
10
MOUNT-ENGINE 3/8-16 50 DUR
3021290
Not Available
11
BOLT
7512539
$7,34 Unit Price incl. VAT
12
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
13
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
14
MOUNT-ENGINE 3/8-16
3021220
Not Available
15
BRKT-ENGINE MOUNT RH FORMED
5245044
Not Available
16
WASHER
7555806
$1,56 Unit Price incl. VAT
17
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
18
WELD-ENG MOUNT BRKT LH
1013397
Not Available
19
SCREW
7517854
$10,49 Unit Price incl. VAT
20
MOUNT-ENGINE 3/8-16 RECT
3021206
$115,49 Unit Price incl. VAT
21
CABLE THROTTLE TWIN
7080867
$57,95 Unit Price incl. VAT
22
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
23
DESC NOT_AVAILABLE
836005215
Not Available
24
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
25
Pump Fuel
2520259
Not Available
26
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
27
TUBING-ETHER ERETHNE 600CM SVC Substituted by 8350018-160
8350018600
8450117-250
$99,74 Unit Price incl. VAT
28
VALVE FUEL PLASTIC 90 DEGREE
7052249
$52,49 Unit Price incl. VAT
29
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
