1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog
STEERING
5

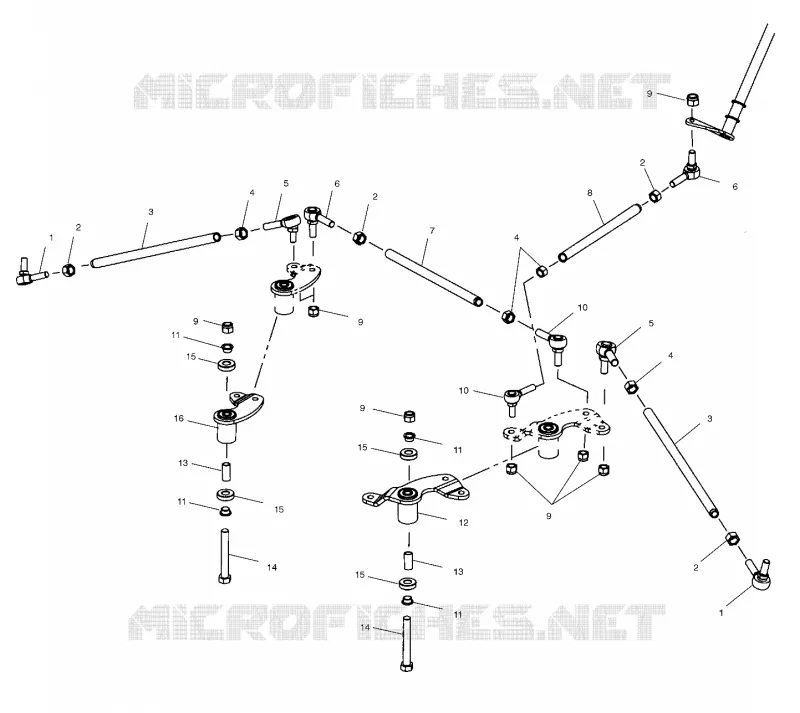

Parts Diagram
Parts Catalog
SKI
by
FRONT TORQUE ARM
STEERING
1
ROD END-3/8 PL 75° 1.00 RH
7061057
$99,74 Unit Price incl. VAT
2
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
3
ROD-TIE RED
5333949293
Not Available
4
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
5
ROD END-3/8 PL 75° LH 750 STUD
7061055
$99,74 Unit Price incl. VAT
6
ROD END-3/8 RH HI-ANGLE PR
7061076
$99,74 Unit Price incl. VAT
7
STEERING ROD RACK 11.50
5333772
5333949
$73,49 Unit Price incl. VAT
8
ROD-DRAGLINK 12.50 STEEL BLK
5333773067
$68,24 Unit Price incl. VAT
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
ROD END-3/8 LH HI-ANGLE PR
7061075
Not Available
11
BUSHING REDUCER
5132106
$13,64 Unit Price incl. VAT
12
ARM-PITMAN ARM EDGE (Incl. 11 13 15)
1820957
$262,49 Unit Price incl. VAT
13
SPACER-TUBE PITMAN/IDLER ARMS
5132495
$52,49 Unit Price incl. VAT
14
BOLT(10)
7512435
Not Available
15
BEARING
3514320
$27,29 Unit Price incl. VAT
16
ASM-IDLER ARM EDGE (Incl. 11 13 15)
1820959
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
