1
Engine displacement
650
2
Year
1990
3
Trim
650 SKS - 0900558
4
Parts Catalog

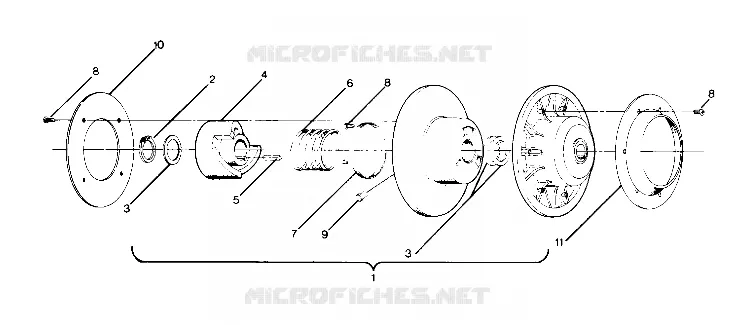

DRIVEN CLUTCH 650 (4916801680011A)
5
Parts Diagram
Parts Catalog
STEERING 650 (4916801680009A)
by
DRIVE CLUTCH 650 (4916801680012A)
DRIVEN CLUTCH 650 (4916801680011A)
1
CLUTCH DRIVEN Substituted by 1322154
1322107
Not Available
2
RING RETAINING(10)
7714804
$17,84 Unit Price incl. VAT
3
Washer .030
7556804
$1,56 Unit Price incl. VAT
4
RAMP DRIVEN 34 DEGREE Substituted by 5130896
5630168
Not Available
5
KEY SQUARE(10)
7721103
$12,59 Unit Price incl. VAT
6
SPRING-CLUTCH Substituted by 7041198
7041038
7041198
$104,99 Unit Price incl. VAT
7
BUSHING D.U.
3569803
Not Available
8
SCREW
7511953
Not Available
9
BUTTON-RAMP (10)
5430466
$12,59 Unit Price incl. VAT
10
PLATE (600 600 SE)
5210749
$39,78 Unit Price incl. VAT
11
CAP DRIVEN (600 600 SE)
5230101
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
