1
Engine displacement
650
2
Year
1990
3
Trim
650 SKS - 0900558
4
Parts Catalog
CRANKCASE 650 (4916801680023A)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 650 (4916801680019A)
by
CYLINDER 650 (4916801680024A)

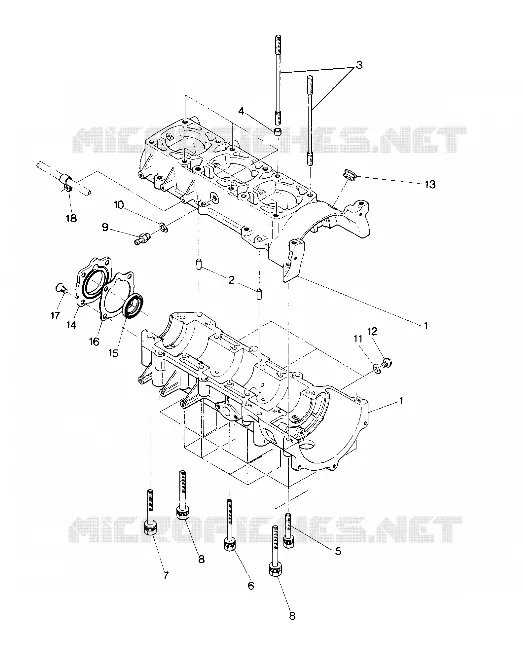

CRANKCASE 650 (4916801680023A)
1
CRANKCASE Substituted by 2200770 (Incl. 2 5-8 18)
3083472
Not Available
2
PIN DOWEL(10) Substituted by 3080103
3083054
$13,64 Unit Price incl. VAT
3
STUD
3083785
Not Available
4
SPACER
3083786
Not Available
5
BOLT AND WASHER ASSY.
3082097
Not Available
6
BOLT-WASHER
3082923
Not Available
7
BOLT & WASHER
3082925
Not Available
8
BOLT-WASHER
3082924
Not Available
9
CONNECTOR
3080641
Not Available
10
WASHER WAVE
3081634
Not Available
11
WASHER WAVE(10)
3083027
Not Available
12
PLUG Substituted by 3084491
3083044
Not Available
13
GROMMET
3082875
$13,64 Unit Price incl. VAT
14
COVER CRANKCASE
3083390
Not Available
15
SEAL OIL(10)
3083331
Not Available
16
GASKET
3083473
$1,98 Unit Price incl. VAT
17
SCREW COUNTER SUNK
3083333
Not Available
18
CLAMP
3083391
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
