1
Engine displacement
650
2
Year
1990
3
Trim
650 SKS - 0900558
4
Parts Catalog
CARBURETOR 650 DEALERS MUST VERIFY JETTING CARBURETOR NUMBER (4916801680031A)
5
Parts Diagram
Parts Catalog
FUEL PUMP 650 (4916801680030A)
by
BRAKE CHAINCASE ALL SWEDISH SNOWMOBILES EXCEPT SUPERTRAK WIDETRAK (49187318730005)

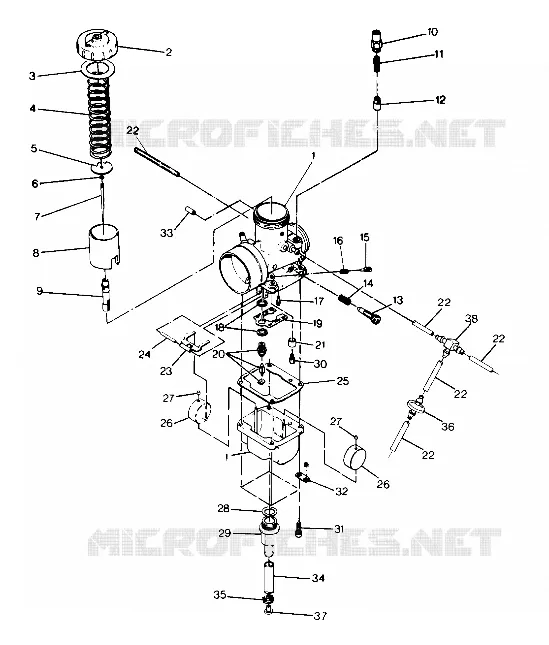

CARBURETOR 650 DEALERS MUST VERIFY JETTING CARBURETOR NUMBER (4916801680031A)
1
CARB. ASM. (Incl. 2-37)
3130389
Not Available
2
TOP (Incl. 3)
3130061
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE Substituted by 3130444
3130334
Not Available
5
PLATE THROTTLE
3130054
$13,64 Unit Price incl. VAT
6
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
7
NEEDLE JET J86DH04 (6DH4-3)
3130402
Not Available
8
VALVE THROTTLE (3.0) (3.0)
3130352
Not Available
9
JET NEEDLE Q-2
3130165
Not Available
10
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
14
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
PILOT JET #45
3130068
$18,89 Unit Price incl. VAT
18
WASHER(10)
3130047
$9,44 Unit Price incl. VAT
19
PLATE
3130243
Not Available
20
VALVE ASM NEEDLE Substituted by 3130643
3130046
$115,49 Unit Price incl. VAT
21
RING CARB
3130232
Not Available
22
HOSE Substituted by 3130241
3081868
Not Available
23
ARM FLOAT
3130048
Not Available
24
PIN FLOAT Substituted by 3130235
3130240
3130361
$18,89 Unit Price incl. VAT
25
GASKET FLOAT CHAMBER
3130236
$20,99 Unit Price incl. VAT
26
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
O-RING
3130239
Not Available
29
NIPPLE Substituted by 5020476 (400)
3130387
$18,68 Unit Price incl. VAT
30
JET MAIN HX.HD#260(10)
3130129
$15,74 Unit Price incl. VAT
31
SCREW
3130056
$6,29 Unit Price incl. VAT
32
PLATE
3130242
Not Available
33
CAP VACUUM FIT
3130379
$10,70 Unit Price incl. VAT
34
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
35
CLAMP
7080236
$3,14 Unit Price incl. VAT
36
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
37
RIVET (PLUG)(50) (400)
7661912
Not Available
38
FITTING T
7052048
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
