RECOIL STARTER ASSEMBLY (4914761476044A) FOR TRAIL BOSS 4X4 - W888127 FROM 1988

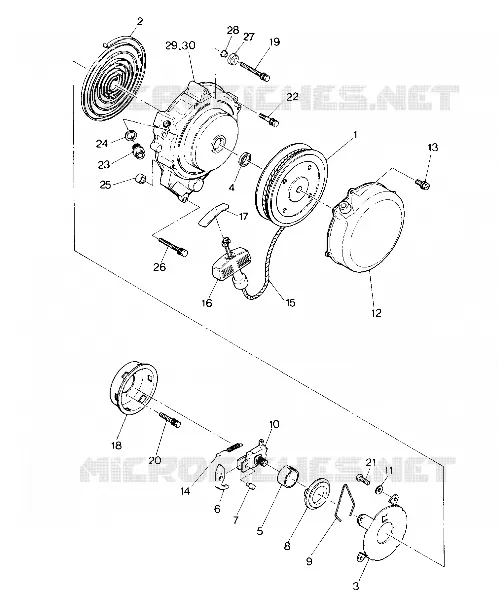

RECOIL STARTER ASSEMBLY (4914761476044A)

-

STARTER RECOIL COMPL. (Incl. 1-18)

3083924

Not Available

1

REEL COMPL.

3083814

$178,49 Unit Price incl. VAT

2

SPRING SPIRAL

3083815

$73,07 Unit Price incl. VAT

3

CASE SPRING

3083925

Not Available

4

GROMMET

3083817

Not Available

5

HOOK SPRING

3083818

Not Available

6

RATCHET

3083819

Not Available

7

PIN RATCHET

3083820

Not Available

8

GUIDE RATCHET

3083821

Not Available

9

SPRING FRICTION

3083912

$41,04 Unit Price incl. VAT

10

GUIDE COMPL.

3083913

Not Available

11

WASHER SPRING(10)

3083917

Not Available

12

CASE STARTER COMPL.

3083914

Not Available

13

BOLT FLANGE

3083826

Not Available

14

SPRING RETURN

3083827

$18,57 Unit Price incl. VAT

15

ROPE STARTER

2870621

$47,24 Unit Price incl. VAT

16

KNOB STARTER

3083659

Not Available

17

CAP KNOB

3083660

Not Available

18

PULLEY STARTING

3083915

Not Available

19

BOLT & WASHER ASM.

3083926

Not Available

20

BOLT&WASHER ASM. Substituted by 3081665

3083792

$6,29 Unit Price incl. VAT

21

SCREW BINDE

3083916

Not Available

22

BOLT&WASHER ASM.

3082228

Not Available

23

PLUG Substituted by 3086749

3083453

Not Available

24

GASKET

3082956

$9,44 Unit Price incl. VAT

25

BUSHING STARTER

3083669

Not Available

26

BOLT&WASHER

3083729

Not Available

27

MOUNTING RUBBER

3083731

$7,97 Unit Price incl. VAT

28

COLLAR

3083732

Not Available

29

CASE STARTER B UNIT

3083911

$435,74 Unit Price incl. VAT

30

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
