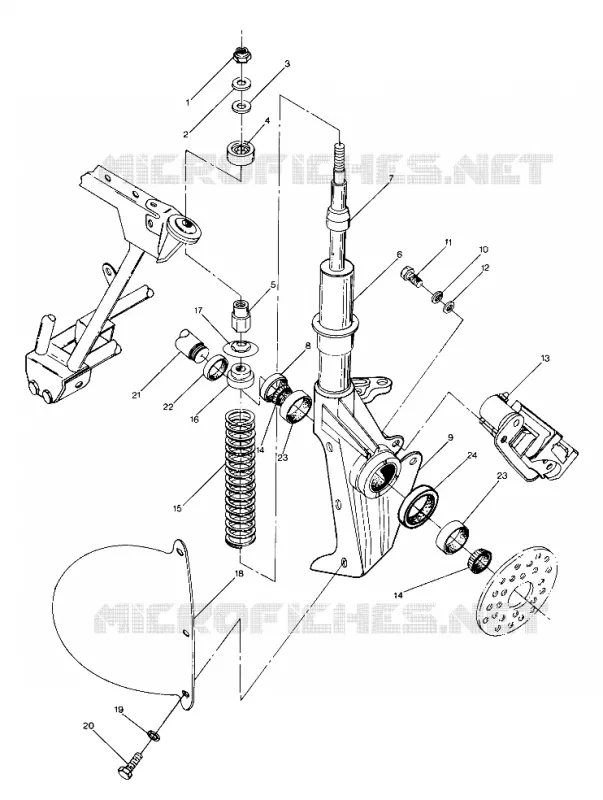

STRUT ASSEMBLY (4914761476015A) FOR TRAIL BOSS 4X4

CABLES (4914761476013A)

FRONT WHEEL ASSEMBLY (4914761476017A)

NUT FLEX LOC(10)

7542507

Not Available

PUMP OIL

3084193

Not Available

NUT

3083120

$6,29 Unit Price incl. VAT

WSHR-.500X1.50-12GA-Y

7555749

$2,09 Unit Price incl. VAT

SPACER-RUBBER

5810291

$7,34 Unit Price incl. VAT

WASHER SPRING

3083121

1205792

$614,24 Unit Price incl. VAT

PIVOT BALL TOP Substituted by 5432872

5430806

5432872

$19,94 Unit Price incl. VAT

SCREW-AIR VENT

3083125

Not Available

SPACER THREADED

5130631

Not Available

WASHER

3084194

$11,01 Unit Price incl. VAT

TUBE STRUT WELD.

1843029

Not Available

SCREW & WASHER(10)

3084205

$7,34 Unit Price incl. VAT

COVER (Oil Pump Case)

3084204

Not Available

BUMPER RUBBER

5410429

Not Available

GASKET OIL PUMP

3084401

Not Available

SEAL STRUT (4WHL.)

3610018

Not Available

GASKET (Oil Pump Case)

3084203

Not Available

O RING

3083127

Not Available

HUB STRUT ASM LH Substituted by 2200283

1843024

Not Available

HUB STRUT ASM RH Substituted by 2200284

1843025

Not Available

SPACER

3084195

Not Available

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

SCREW CAP(10) [CALIPER MOUNTING]

7512365

$2,09 Unit Price incl. VAT

WHEEL

3084196

Not Available

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

PIN SPRING

3084197

Not Available

BRAKE ASM RH FRONT Substituted by 1930664

1930640

Not Available

BRAKE ASM LH FRONT Substituted by 1930663

1930639

Not Available

SCREW&WASHER (10)

3083783

$4,19 Unit Price incl. VAT

BRG TAPER.ROLL.CONE

3554506

$54,59 Unit Price incl. VAT

PIPE RUBBER Substituted by 3086776

3084199

Not Available

CLAMP HOSE

3083141

$2,09 Unit Price incl. VAT

SPRING STRUT RED Substituted by 7041161-093

7041215

Not Available

GROMMET Substituted by 3086777

3084201

Not Available

RETAINER SPRING TOP (Before 11/2/98)

5220602

Not Available

CASE OIL PUMP (Oil Pump)

3084400

$134,91 Unit Price incl. VAT

PIVOT BALL BOTTOM Substituted by 5432871

5430807

5432871

$19,94 Unit Price incl. VAT

SHIELD BOOT RH

5430916

Not Available

SHIELD BOOT LH

5430915

Not Available

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

SCREW(10)

7512252

Not Available

SHAFT DRIVE ASM.

1380017

Not Available

COLLAR

5220883

Not Available

BRG TAPER ROLL CUP

3554507

$54,59 Unit Price incl. VAT

HUB STRUT ASM RH Substituted by 2200284

1843027

Not Available

SLEEVE STRUT SEAL

5220882

$85,88 Unit Price incl. VAT

HUB STRUT ASM LH Substituted by 2200283

1843026

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
