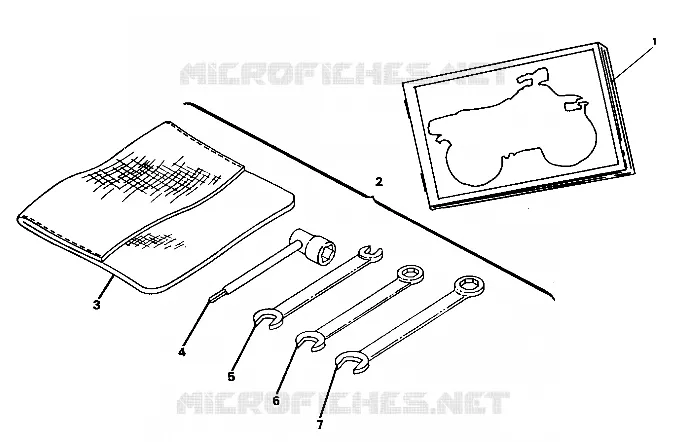

TOOL KIT ASSEMBLY (4914761476045A) FOR TRAIL BOSS 4X4 - W888127 FROM 1988

OIL PUMP ASSEMBLY (4914761476040A)

HEADLIGHT ASSEMBLY (4914761476007A)

TOOL KIT ASSEMBLY (4914761476045A)

1

SUPPORT LH STRUT&SPINDLE Substituted by 5130803

5130655

Not Available

1

OWN.MAN 4X4(#88) [No Longer Available]

9911427

$26,97 Unit Price incl. VAT

1

SUPPORT RH STRUT&SPINDLE Substituted by 5130804

5130656

Not Available

2

SEAL FRONT HUB

3610020

Not Available

2

TOOL KIT ATV Substituted by 2870694

2870638

Not Available

3

POUCH TOOL KIT Substituted by 2682572

2690016

$47,24 Unit Price incl. VAT

3

BEARING BALL

3514001

$34,64 Unit Price incl. VAT

4

DISC BRAKE FRONT Substituted by 5211325

5211271

Not Available

4

WRENCH SPECIAL BOX

3083612

Not Available

5

WRENCH SPANNER 10-12

3083613

Not Available

5

HUB WHEEL FRONT

5130658

Not Available

6

TIRE FR (22X8-10)

5410408

Not Available

6

WRENCH 7/16BOX/OPEN [No Longer Available]

7080299

Not Available

7

RIM FRONT PRIMED Substituted by 1520118

1520127

Not Available

7

WRENCH 1/2BOX/OPEN

7080301

Not Available

8

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

9

SPACER HUB FRONT

5010256

Not Available

10

WASHER

7555721

$2,09 Unit Price incl. VAT

11

NUT(10)

7542712

$17,84 Unit Price incl. VAT

12

COTTER PIN(10)

7661407

$9,44 Unit Price incl. VAT

13

CAP HUB

5431018

$31,49 Unit Price incl. VAT

14

O RING

5410470

$4,19 Unit Price incl. VAT

15

NUT-5/16-18-FULL HT-Y

7542301

$3,14 Unit Price incl. VAT

16

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

17

BOLT(10)

7515321

Not Available

18

STUD WHEEL 5/16-18(10)

7515330

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
