HEADLIGHT ASSEMBLY (4914761476007A) FOR TRAIL BOSS 4X4 - W888127 FROM 1988

TOOL KIT ASSEMBLY (4914761476045A)

AIR BOX (4914761476008A)

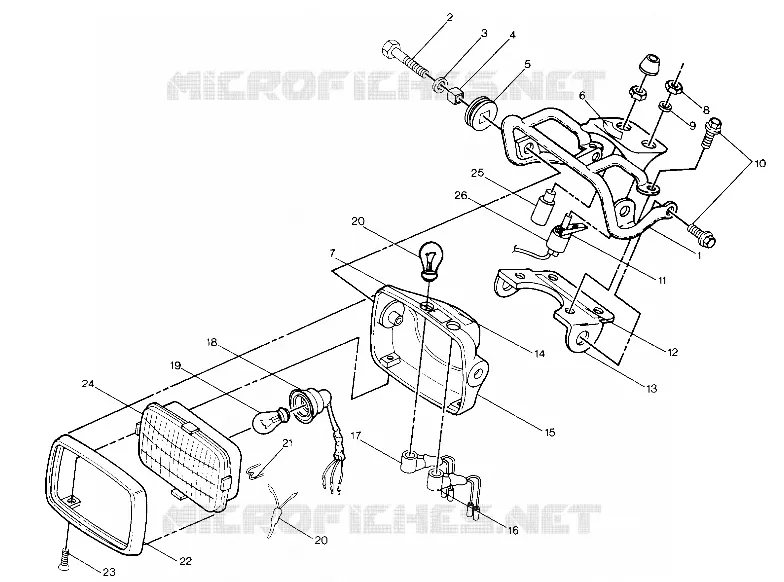

HEADLIGHT ASSEMBLY (4914761476007A)

1

STAY HEADLIGHT

4032006

Not Available

2

BOLT HEADLIGHT

4032024

Not Available

3

WASHER PLATE HEADLIGHT

4032025

Not Available

4

COLLAR BODY FITTING

4032022

Not Available

5

DAMPER HEADLIGHT

4032023

Not Available

6

DECAL IGNITION [No Longer Available]

7072370

Not Available

8

Nut Choke Slide

7080229

$36,74 Unit Price incl. VAT

9

INSERT CHOKE MT. [No Longer Available]

5430816

Not Available

10

SCREW(10)

7512252

Not Available

11

KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN

2200188

$52,49 Unit Price incl. VAT

12

DECAL OIL/PARK [No Longer Available]

7072376

Not Available

13

BRACKET H/L MT.

5220484

Not Available

14

DECAL INDIC.LIGHT [No Longer Available]

7072640

Not Available

16

PILOT LIGHT ASM ON/OFF

4032027

Not Available

17

PILOT LIGHT ASM REVERSE

4032026

Not Available

18

SOCKET CORD ASM.

4032011

Not Available

19

BULB HEADLIGHT

4032007

Not Available

20

BULB INDIC. LIGHT

4030032

Not Available

21

SPRING REFLECTOR

4032010

Not Available

22

RIM HEADLIGHT

4032009

Not Available

23

SCREW PAN HEAD

4032013

Not Available

24

LENS ASM. HEADLIGHT

4032008

Not Available

25

SWITCH IGNITION MODIFIED

4110065

Not Available

26

CABLE CHOKE

7080357

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
