THROTTLE BODY 500 EFI 0973774 (4938423842C013)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 500 EFI 0973774 (4938423842C012)
by

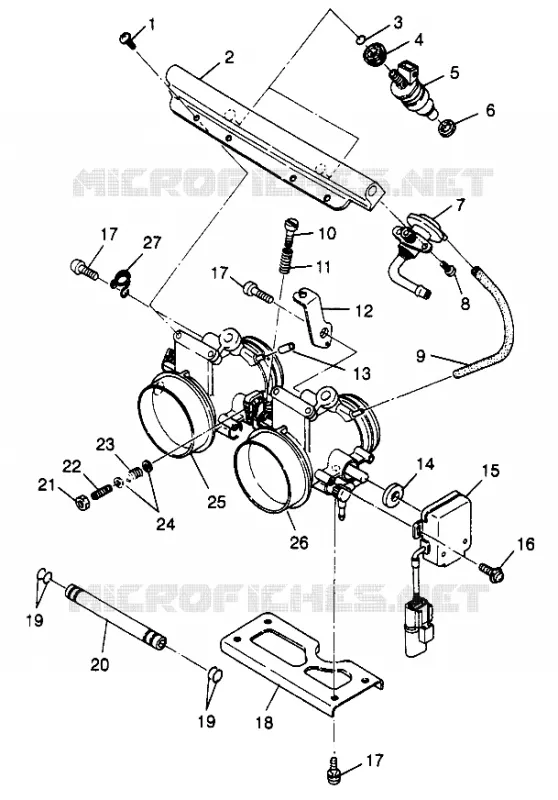

THROTTLE BODY 500 EFI 0973774 (4938423842C013)
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
18
19
19
20
21
22
23
24
25
26
27
-
THROTTLEBODY ASM.
3084350
Not Available
1
SCREW
3084359
Not Available
2
PIPE FUEL DELIVERY
3084363
Not Available
3
O RING CONNECTOR
3084057
Not Available
4
INSULATOR UPPER
3084058
Not Available
5
INJECTOR FUEL
3084056
Not Available
6
INSULATOR LOWER
3084059
Not Available
7
REGULATOR ASM.
3084351
Not Available
8
SCREW
3084065
Not Available
9
PIPE RUBBER
3084393
Not Available
10
SCREW ADJUST.
3084068
$9,44 Unit Price incl. VAT
11
SPRING
3084069
Not Available
12
WIRE STAY (Wire)
3084364
Not Available
13
CAP RUBBER
3084077
Not Available
14
GASKET
3084385
Not Available
15
SENSOR ASM THROTTLE
3084616
Not Available
16
SCREW
3084064
Not Available
17
SCREW
3084392
Not Available
18
STAY PLATE
3084352
Not Available
19
O RING
3084063
Not Available
20
JOINT PIPE
3084062
Not Available
21
NUT
3084072
Not Available
22
SCREW ADJUST.
3084073
$18,68 Unit Price incl. VAT
23
SPRING
3084071
Not Available
24
WASHER(10)
3084070
Not Available
25
THROTTLEBODY 1 ASM.
3084309
Not Available
26
THROTTLEBODY 3 ASM.
3084311
Not Available
27
CLAMP HOSE
3084312
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
