1
Engine displacement
500
2
Year
1997
3
Trim
500 EFI - 0973774
4
Parts Catalog

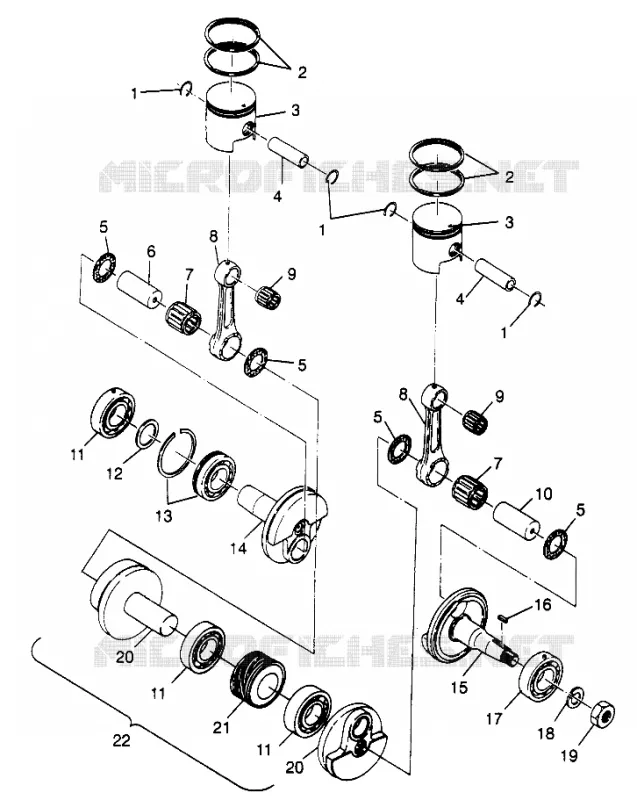

PISTON CRANKSHAFT 500 EFI 0973774 (4938423842C007)
5
Parts Diagram
Parts Catalog
CYLINDER 500 EFI 0973774 (4938423842C006)
by
WATER PUMP 500 EFI 0973774 (4938423842C008)
PISTON CRANKSHAFT 500 EFI 0973774 (4938423842C007)
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
5
5
5
5
6
7
7
8
8
9
9
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
1
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
2
RING PISTON (.020 O/S) (.020 Oversize)
3084344
Not Available
2
RING PISTON STD. (Standard)
3084342
$68,24 Unit Price incl. VAT
2
RING PISTON (.010 O/S) (.010 Oversize)
3084343
Not Available
3
PISTON (.020 O/S) (.020 Oversize) (Incl
3084341
Not Available
3
PISTON STD. (Standard) (Incl.16)
3084339
Not Available
3
PISTON (.010 O/S) (.010 Oversize) (Incl
3084340
Not Available
4
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
5
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
6
CRANK PIN 2
3083456
5141629
$57,74 Unit Price incl. VAT
7
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
8
ROD-CONNECTING
3083252
$236,24 Unit Price incl. VAT
9
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
10
PIN CRANK
3083233
Not Available
11
BALL BEARING
3085205
Not Available
12
DESC NOT_AVAILABLE
3085237
Not Available
13
BALL BEARING
3085204
Not Available
14
CRANKSHAFT 3 (PTO Side)
3085202
Not Available
15
CRANKSHAFT #1
3083362
Not Available
16
KEY
3081447
Not Available
17
BEARING BALL
3084586
3515063
$60,89 Unit Price incl. VAT
18
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
19
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
20
CRANKSHAFT 2 (Incl. 6)
3083713
$806,39 Unit Price incl. VAT
21
GEAR DRIVE OIL PUMP
3083782
$150,14 Unit Price incl. VAT
22
CRANKSHAFT ASM (Incl. 5 8 7-15 20)
3085206
$1 665,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
