1
Engine displacement
500
2
Year
1997
3
Trim
500 EFI - 0973774
4
Parts Catalog

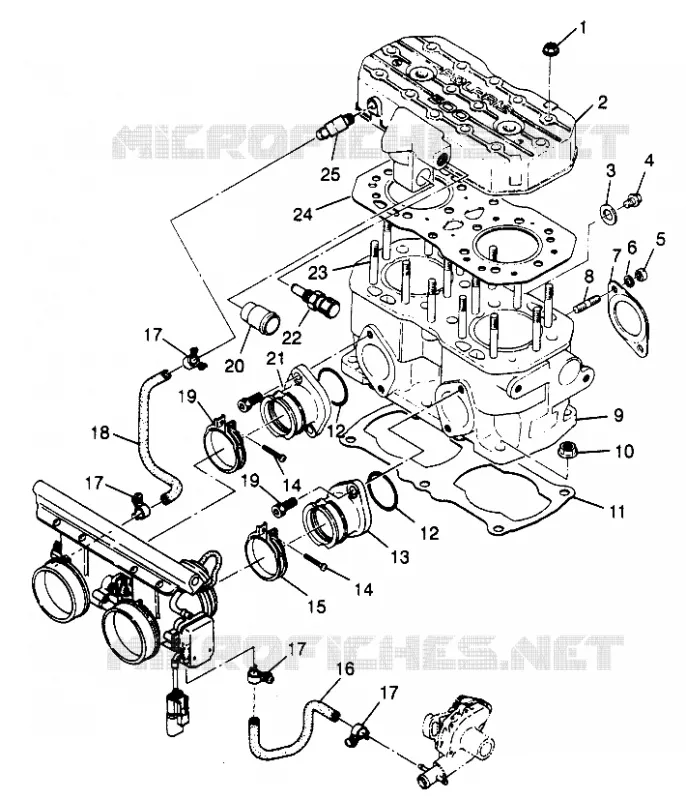

CYLINDER 500 EFI 0973774 (4938423842C006)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 500 EFI 0973774 (4938423842C001)
by
PISTON CRANKSHAFT 500 EFI 0973774 (4938423842C007)
CYLINDER 500 EFI 0973774 (4938423842C006)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
17
17
17
18
19
19
20
21
22
23
24
25
1
NUT-FLANGE(10)
3082910
Not Available
2
HEAD CYLINDER (Incl. 20 25)
3085463
Not Available
3
GASKET ALUMINUM
3084492
$7,34 Unit Price incl. VAT
4
PLUG
3084491
Not Available
5
NUT(10)
3080285
Not Available
6
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
7
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
8
STUD (10)
3085326
Not Available
9
CYLINDER CPL. (Incl. 2 3)
3084330
$807,44 Unit Price incl. VAT
10
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
11
GASKET BASE
3084768
$94,49 Unit Price incl. VAT
12
O-RING
3084229
Not Available
13
ADAPTER CPL. RH
3084335
Not Available
14
SCREW
3081497
$4,19 Unit Price incl. VAT
15
BAND ASM. (Incl. Bolt)
3084045
$47,24 Unit Price incl. VAT
16
HOSE 2 WATER
3084338
Not Available
17
CLAMP
3084051
Not Available
18
HOSE 1 WATER
3084337
Not Available
19
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
20
PIPE WATER (Water)
3083452
Not Available
21
ADAPTER CPL LH
3084334
Not Available
22
SENSOR WATER TEMP. Substituted by 3086138
3084333
Not Available
23
STUD
3083360
Not Available
24
GASKET HEAD
3084332
Not Available
25
PIPE HEAD (Head)
3084390
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
