1
Engine displacement
500
2
Year
2007
3
Trim
SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU
4
Parts Catalog
REAR BRAKE AND FOOT PEDAL
5
Parts Diagram
Parts Catalog
TRANSMISSION INTERNALS
by
OIL TANK

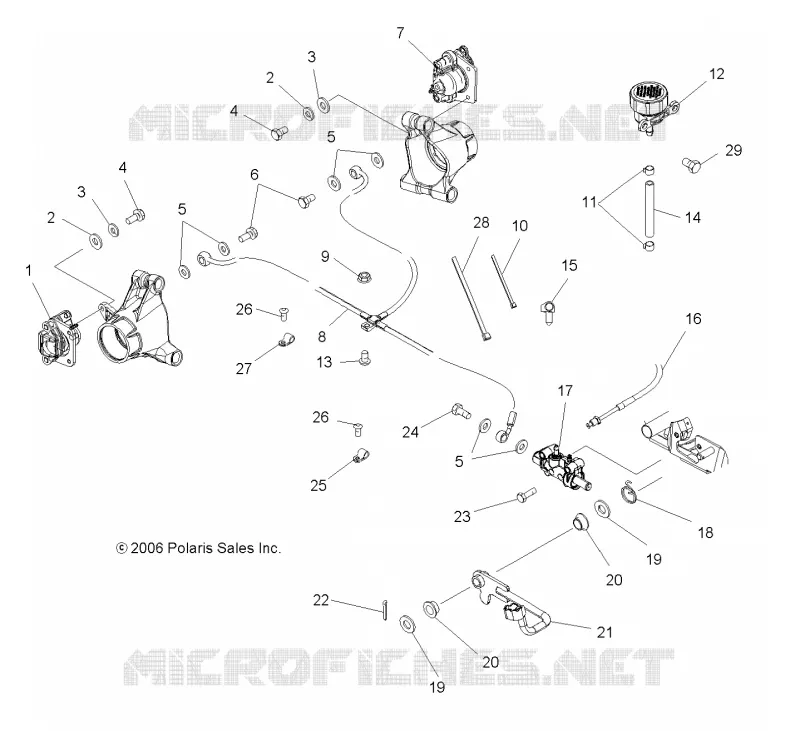

REAR BRAKE AND FOOT PEDAL
1
2
2
3
3
4
4
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
26
27
28
29
1
Asm. Caliper Brake RH
1911217
$488,24 Unit Price incl. VAT
2
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
3
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
4
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
5
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
5
SEAL
5410988
$9,44 Unit Price incl. VAT
6
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
7
Asm. Caliper Brake LH
1911216
$488,24 Unit Price incl. VAT
8
Line Rear Brake
1910979
Not Available
9
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
10
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
11
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
12
Reservoir Brake Rear
1910982
Not Available
13
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
14
HOSE-RESERVOIR BRAKE 635MM
1911267635
1911267-790
$23,09 Unit Price incl. VAT
14
Hose Reservoir [If built before 10/18/06]
1910957
1911267-790
$23,09 Unit Price incl. VAT
15
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
16
Line JB to FT M/C
1910980
$178,49 Unit Price incl. VAT
17
ASM. MASTER CYLINDER
1911123
1913033
$257,24 Unit Price incl. VAT
18
Spring Torsion
7043276
Not Available
19
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
20
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
21
Pedal Brake
1910919067
$115,49 Unit Price incl. VAT
22
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
23
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
24
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
25
CLAMP RUBBER-COATED .562(10)
7080573
$13,64 Unit Price incl. VAT
26
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
27
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
28
CABLE TIE
7080356
$4,19 Unit Price incl. VAT
29
SCREW (10)
7517380
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
