Engine displacement
500
2
Year
2007
3
Trim
SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU
4
Parts Catalog
TRANSMISSION INTERNALS
5

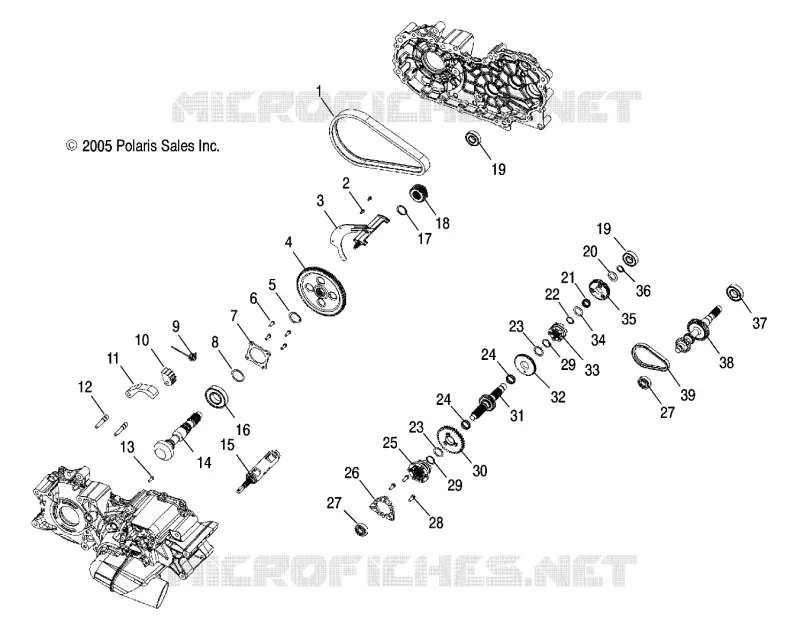

Parts Diagram
Parts Catalog
TRANSMISSION
by
REAR BRAKE AND FOOT PEDAL
TRANSMISSION INTERNALS
-
1
2
3
4
5
13
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
23
24
24
25
26
27
27
28
29
29
30
31
32
33
34
35
36
37
38
39
-
Asm. Gearcase
1332533
Not Available
1
CHAIN SILENT 17 WIDE X 1.0 X 86p
3234057
$519,74 Unit Price incl. VAT
2
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
3
DEFLECTOR OIL
3234061
3239943
$52,49 Unit Price incl. VAT
4
GEAR OUTPUT 91T HRC
3234062
$493,49 Unit Price incl. VAT
5
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
6
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
7
COVER BEARING CENTER DRIVE
3234063
$62,99 Unit Price incl. VAT
8
SHIM 1.700 X 1.385
3234271
$47,24 Unit Price incl. VAT
9
SPRING TORSION
3233431
$47,24 Unit Price incl. VAT
10
CAM CHAIN TENSIONER
3233434
$26,24 Unit Price incl. VAT
11
SHOE CHAIN TENSIONER
3233433
$62,99 Unit Price incl. VAT
12
PIN TENSIONER
3233432
$13,64 Unit Price incl. VAT
13
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
14
PINION CENTER DRIVE 13T
3234263
$818,99 Unit Price incl. VAT
15
DRUM SHIFT MACH
3234360
$335,99 Unit Price incl. VAT
16
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
17
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
18
SPROCKET 19T 1.00#
3234060
$451,49 Unit Price incl. VAT
19
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
20
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
21
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
22
RING RETAINING BASIC EXTERNAL DIA 0.84
3234336
$10,49 Unit Price incl. VAT
23
WASHER THRUST 1.300 X 0.995 X 0.065
3234248
$17,84 Unit Price incl. VAT
24
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
25
ENGAGEMENT DOG 6-FACE L/P
3234257
$283,49 Unit Price incl. VAT
26
PLATE PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
27
BEARING BALL 6203 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
28
SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75
3234247
$10,49 Unit Price incl. VAT
29
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
30
GEAR 33T 6 FACE
3234291
$325,49 Unit Price incl. VAT
31
SHAFT REVERSE 26T
3234280
$488,24 Unit Price incl. VAT
32
SPROCKET 38T 6 FACE
3234290
$283,49 Unit Price incl. VAT
33
DOG ENGAGEMENT 6 FACE
3234258
$178,49 Unit Price incl. VAT
34
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
35
Gear 36T
3234352
$194,24 Unit Price incl. VAT
36
RING RETAINING BASIC EXTERNAL .787 SHAFT
3234067
$14,69 Unit Price incl. VAT
37
BEARING
3233019
$54,59 Unit Price incl. VAT
38
Asm. Input Shaft
3234348
$451,49 Unit Price incl. VAT
39
SILENT CHAIN .25P X 0.4 W X 50L
3234264
$188,99 Unit Price incl. VAT
