1
Engine displacement
500
2
Year
2007
3
Trim
SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU
4
Parts Catalog

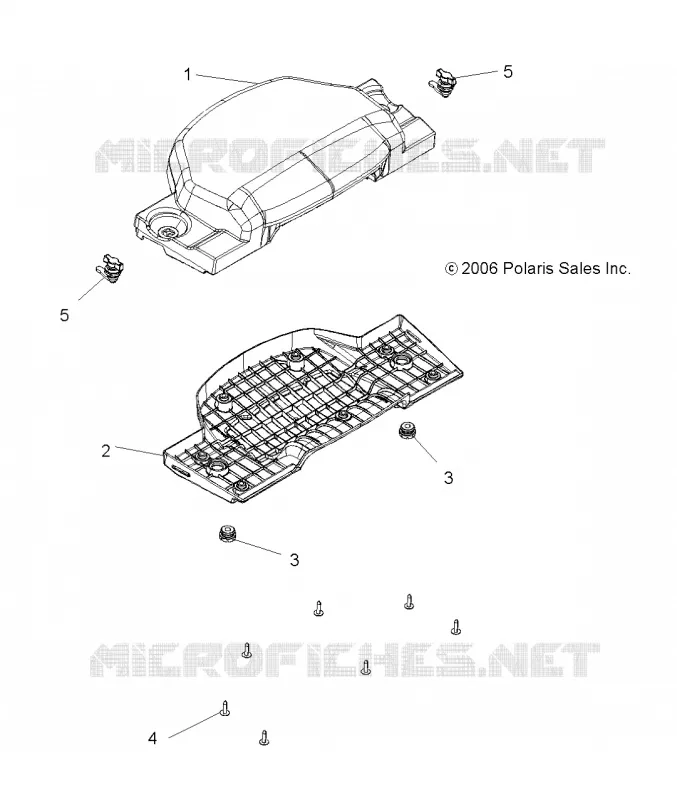

SEAT, PASSENGER, BOTTOM
5
Parts Diagram
Parts Catalog
FRONT OUTPUT SHAFT
by
PROP SHAFT
SEAT, PASSENGER, BOTTOM
1
2
3
3
4
5
5
1
Bun Seat Passenger Black
5436845070
Not Available
2
Base Seat Passenger BTM w/Decal
5436847
Not Available
3
Grommet Seat Latch
5412994
5418181
$6,29 Unit Price incl. VAT
4
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
5
Latch
7081416
$41,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
