1
Engine displacement
350
2
Year
1992
3
Trim
TRAIL BOSS 350L 4X4 - W928139
4
Parts Catalog
CRANKSHAFT AND PISTON 350 4X4/W928139 (4922832283038A)
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER 350 4X4 / W928139 (4922832283037A)
by
OIL PUMP ASSEMBLY 350 4X4 / W928139 (4922832283039A)

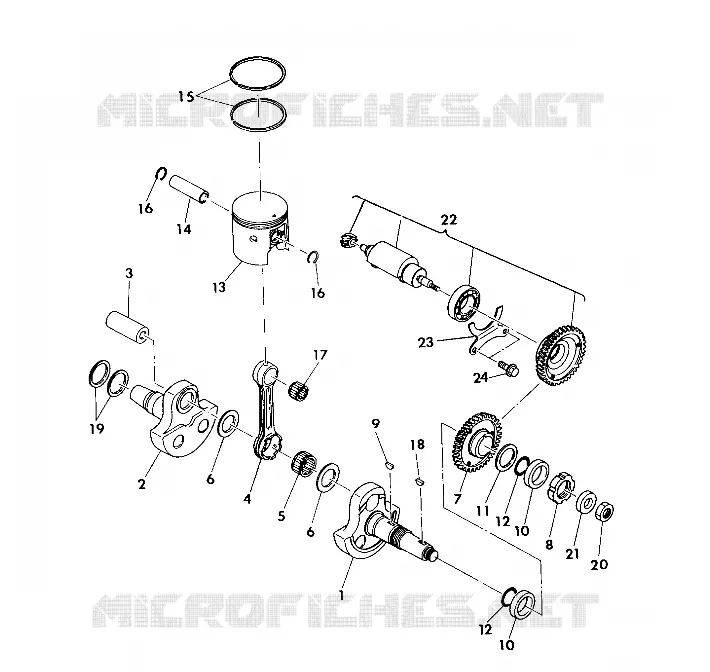

CRANKSHAFT AND PISTON 350 4X4/W928139 (4922832283038A)
1
CRANKSHAFT #1 MAG SIDE
3084149
$278,24 Unit Price incl. VAT
1
CRANKSHAFT ASM (350L) Substituted by 3084776
3084367
Not Available
2
CRANKSHAFT #2 PTO SIDE
3084151
Not Available
3
PIN CRANK #1
3084152
$125,99 Unit Price incl. VAT
4
ROD CONNECTING
3084153
Not Available
5
BEARING LARGE END
3084154
Not Available
6
SPACER CRANK PIN (Crank Pin)
3084155
Not Available
7
GEAR DRIVE * (Drive)
3084156
Not Available
8
NUT SLIT Substituted by 3086762 (Slit)
3084157
Not Available
9
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
10
COLLAR Substituted by 3086763
3084158
Not Available
11
WASHER GUIDE Substituted by 3086764
3084159
Not Available
12
O RING
3084160
Not Available
13
PISTON (STD.)
3084161
Not Available
13
PISTON (.020 O/S)
3084163
Not Available
13
PISTON (.010 O/S) *
3084162
Not Available
14
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
15
RING PISTON (.020 O/S)
3084166
Not Available
15
RING PISTON (STD.)
3084164
Not Available
15
RING PISTON (.010 O/S)
3084165
Not Available
16
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
17
BEARING SMALL END
3084168
$54,59 Unit Price incl. VAT
19
SPACER #1 (0.2)
3084169
Not Available
19
SPACER #2 (0.3)
3084170
Not Available
20
LOCKNUT
3083905
Not Available
21
WASHER Substituted by 3086767
3083904
Not Available
22
BALANCER Substituted by 3087042
3084172
Not Available
23
PLATE Substituted by 3086768
3084173
$41,04 Unit Price incl. VAT
24
BOLT FLANGE Substituted by 3086769
3084174
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
