1
Engine displacement
350
2
Year
1992
3
Trim
TRAIL BOSS 350L 4X4 - W928139
4
Parts Catalog
CRANKCASE AND CYLINDER 350 4X4 / W928139 (4922832283037A)
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE ASSEMBLY 350 4X4 / W928139 (4922832283035A)
by
CRANKSHAFT AND PISTON 350 4X4/W928139 (4922832283038A)

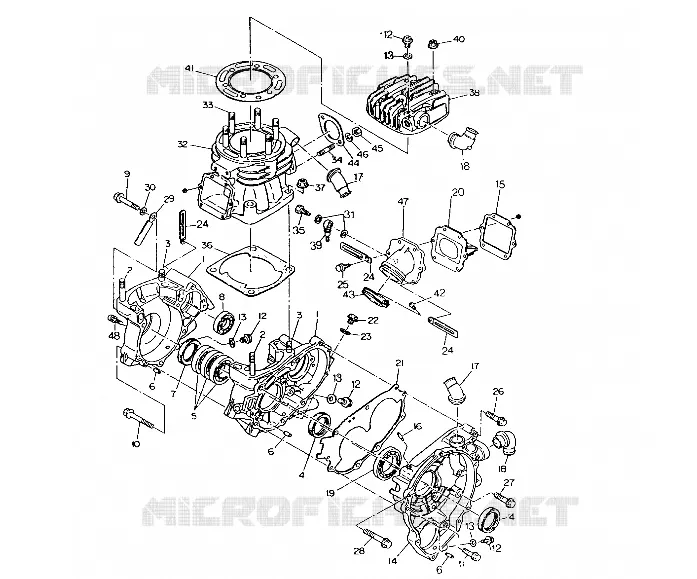

CRANKCASE AND CYLINDER 350 4X4 / W928139 (4922832283037A)
1
CRANKCASE ASM.
3084117
Not Available
2
STUD
3084118
Not Available
3
STUD
3084119
$17,84 Unit Price incl. VAT
4
SEAL OIL
3084120
Not Available
5
BEARING BALL
3084121
$68,24 Unit Price incl. VAT
6
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
7
SEAL OIL
3084122
Not Available
8
BEARING BALL
3084123
Not Available
9
BOLT FLANGE
3084124
Not Available
10
BOLT FLANGE Substituted by 3086742
3084125
Not Available
11
BOLT FLANGE
3084126
Not Available
12
PLUG DRAIN
3083767
Not Available
13
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
14
CRANKCASE #3
3084127
Not Available
15
GASKET REED VALVE (10) (Reed Valve)
3084148
Not Available
16
PIPE BREATHER (Breather)
3084128
Not Available
17
PIPE 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Not Available
18
PIPE 2 ELBOW Substituted by 3086747
3084130
Not Available
19
BEARING BALL
3084131
Not Available
20
VALVE ASM. REED
3084147
Not Available
21
GASKET CASE 3 (Case 3)
3084133
Not Available
22
PLUG Substituted by 3086749
3083453
Not Available
23
GASKET
3082956
$9,44 Unit Price incl. VAT
24
CLAMP
3083590
$7,34 Unit Price incl. VAT
25
BOLT FLANGE Substituted by 3086759 (Adapter)
3084145
Not Available
26
BOLT FLANGE Substituted by 3086751
3084177
Not Available
27
BOLT FLANGE
3084134
Not Available
28
BOLT FLANGE
3084135
Not Available
29
CLAMP
3083384
Not Available
30
WASHER(10)
3080142
Not Available
31
WASHER(10) Substituted by 7555998
3083138
7555998
$2,09 Unit Price incl. VAT
32
CYLINDER
3084137
Not Available
33
STUD
3084138
Not Available
34
STUD (10)
3080016
$9,23 Unit Price incl. VAT
35
BOLT-BANJO
3083137
Not Available
36
GASKET CYLINDER (Cylinder)
3084140
Not Available
37
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
38
HEAD CYLINDER
3084141
$647,84 Unit Price incl. VAT
39
VALVE CHECK
3083894
Not Available
40
NUT-FLANGE(10)
3082910
Not Available
41
GASKET HEAD(350L) * (Head)
3084517
Not Available
42
SCREW
3081497
$4,19 Unit Price incl. VAT
43
BAND ASM. (Adapter)
3084144
Not Available
44
GASKET EXHAUST
3083770
Not Available
45
NUT(10)
3080285
Not Available
46
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
47
ADAPTER
3084143
Not Available
48
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
