1
Engine displacement
500
2
Year
1996
3
Trim
sportsman-500-w969244
4
Parts Catalog

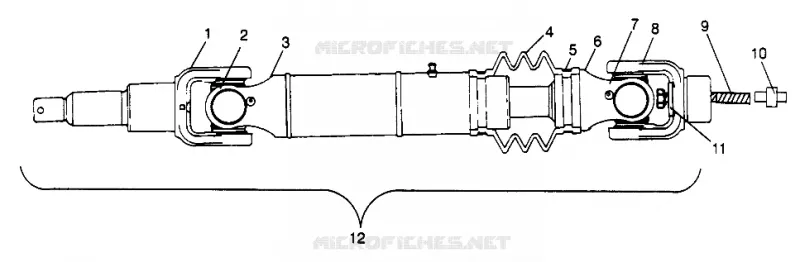

REAR DRIVE SHAFT SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B003)
5
Parts Diagram
Parts Catalog
CV JOINT
by
PROP SHAFT SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B004)
REAR DRIVE SHAFT SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B003)
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
1
YOKE Substituted by 3260137
5131368
Not Available
2
JOINT ASM.CARDAN 1200 SERIES
1590257
$89,24 Unit Price incl. VAT
3
YOKE TUBE & SLEEVE
5131367
$435,74 Unit Price incl. VAT
4
BOOT SHAFT R.HALF
5411161
$83,99 Unit Price incl. VAT
5
CLAMP (BOOT)
5241755
$52,49 Unit Price incl. VAT
6
YOKE SHAFT
5131369
Not Available
7
YOKE
5131370
Not Available
8
JOINT ASM CARDAN 1800 SERIES
1590256
$104,99 Unit Price incl. VAT
9
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
10
SPACER HALFSHAFT ATTACH.
5020890
Not Available
11
Washer .105
7555832
$4,19 Unit Price incl. VAT
12
DRIVESHAFT ASM REAR Substituted by 1380110
1380087
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
