1
Engine displacement
500
2
Year
1996
3
Trim
sportsman-500-w969244
4
Parts Catalog

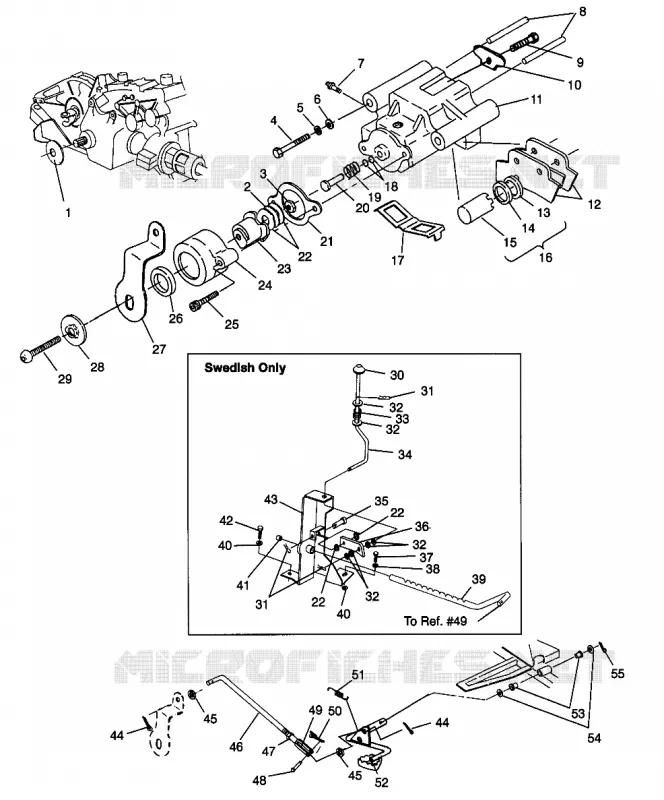

REAR BRAKE SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C007)
5
Parts Diagram
Parts Catalog
REAR SUSPENSION SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)
by
REAR WHEEL DRIVE SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C008)
REAR BRAKE SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C007)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
31
31
32
32
32
32
33
34
35
36
37
38
39
40
40
41
41
41
41
42
43
44
44
45
45
46
46
46
46
47
48
49
50
51
52
53
54
55
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
31
31
32
32
32
32
33
34
35
36
37
38
39
40
40
41
41
41
41
42
43
44
44
45
45
46
46
46
46
47
48
49
50
51
52
53
54
55
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
1
DISC ASM BRAKE
1910188
Not Available
2
WASHER-.25X.50X.030 DELRIN
7555921
Not Available
3
NUT LH(10)
7542149
$9,44 Unit Price incl. VAT
4
BOLT(10)
7515345
$10,49 Unit Price incl. VAT
5
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
6
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
7
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
8
PIN DOWEL(10)
7661820
$20,99 Unit Price incl. VAT
9
SCREW SEMS(10)
7512020
$4,19 Unit Price incl. VAT
10
PLATE BRAKE CALIPER
5211668
Not Available
11
CALIPER R.BRAKE MACH
5131260
Not Available
11
CALIPER ASM R.BRAKE Substituted by 1910225
1910201
Not Available
12
KIT BRAKEPAD REAR (Incl. Pins)
2200464
$56,16 Unit Price incl. VAT
13
SQUARE RING-MOLDED (.134)
5410766
$20,99 Unit Price incl. VAT
14
RING SQUARE (1##DIAM.) Substituted by 2200463
5410767
2200463
$167,99 Unit Price incl. VAT
15
PISTON BRAKE Substituted by 2200463
5020667
$167,99 Unit Price incl. VAT
16
KIT PISTON&SEAL (Incl. 6 - 8)
2200463
$167,99 Unit Price incl. VAT
17
SPRING ANTI-RATTLE
5240993
Not Available
18
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
19
SPRING BRAKE COMP.
7041219
Not Available
20
PIN BRAKE CALIPER
5020791
Not Available
21
GASKET BRAKE
5830009
Not Available
22
WASHER-.5X.262X.06(16 GA)-Y
7555827
$7,34 Unit Price incl. VAT
23
RAMP MOVE.BRAKE Substituted by 2200906
5630538
Not Available
24
RAMP STAT.BRAKE Substituted by 2200905
5630457
Not Available
25
SCREW(10)
7512173
Not Available
26
SEAL BRAKE
3610026
Not Available
27
ARM BRAKE CALIPER
5241458
Not Available
28
WASHER(10)
7571632
Not Available
29
BOLT LH SOC/HD.
7515160
Not Available
30
PUSHNUT RED(10)
7670063
Not Available
31
PIN COTTER(10)
7661010
$1,56 Unit Price incl. VAT
32
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
33
SPRING
7041365
Not Available
34
ROD BRAKE LOCK
5224759
Not Available
35
PIN CLEVIS
7661014
$6,81 Unit Price incl. VAT
36
PAWL BRAKE SWEDISH (SWED)
5241794
Not Available
37
SCREW
7512283
$7,34 Unit Price incl. VAT
38
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
39
ROD RATCHET
5241795
$30,75 Unit Price incl. VAT
40
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
41
BUSHING OPEN/CLOSE(10)
7080399
Not Available
41
DESC NOT_AVAILABLE (US)
5432489
Not Available
42
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
43
DESC NOT_AVAILABLE (SWED)
1910218067
Not Available
44
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
45
WASHER
7555806
$1,56 Unit Price incl. VAT
46
BRAKE ASM LINK.ROD (Incl. 49-46)
1910208
Not Available
46
ROD BRAKE Substituted by 1910208
5224648
Not Available
47
NUT-M6X1 HX R.HAND-Y
7546701
$7,34 Unit Price incl. VAT
48
PIN-CLEVIS 1/4 X 3/4 -Y
7661843
$4,19 Unit Price incl. VAT
49
CLEVIS THREADED
7080545
$5,76 Unit Price incl. VAT
50
PIN COTTER(10)
7661103
Not Available
51
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
52
BRAKE FOOT BLK
1910190067
Not Available
53
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
54
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
55
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
