1
Engine displacement
500
2
Year
1996
3
Trim
sportsman-500-w969244
4
Parts Catalog

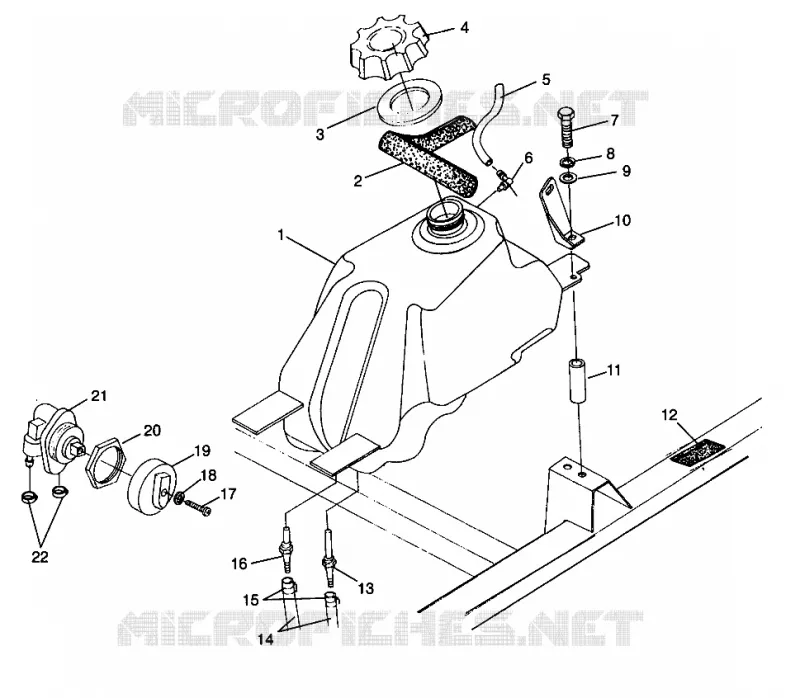

FUEL TANK SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609A014)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM SPORTSMAN 500 W969244 (4936093609A013)
by
FRONT WHEEL SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B006)
FUEL TANK SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609A014)
1
2
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
2
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
FUELTANK ASM. Substituted by 2520144
2511265
Not Available
2
Seal Foam
5811310
Not Available
3
GASKET-GAS CAP
5810144
$10,49 Unit Price incl. VAT
4
CAP GAS (BLACK)
5430725
$47,24 Unit Price incl. VAT
5
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
6
Vent Tank
5431053
$47,24 Unit Price incl. VAT
7
SCREW(10)
7515349
Not Available
8
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
9
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
10
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
10
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
11
Spacer
5332457
Not Available
12
PAD
5810317
Not Available
13
Fitting Fuel Outlet Main
7052150
$52,49 Unit Price incl. VAT
14
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
15
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
16
Fitting Fuel Outlet Reserve
7052149
$41,99 Unit Price incl. VAT
17
SCREW S.S.(10)
7516302
$6,29 Unit Price incl. VAT
18
WASHER FLAT S.S.(10)
7555840
$5,45 Unit Price incl. VAT
19
KNOB FUEL VALVE Substituted by 5432559
5431807
Not Available
20
NUT FUEL VALVE
5431451
Not Available
21
VALVE CHECK
7052063
Not Available
22
CLAMP HOSE S.S.(10)
7080476
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
