1
Engine displacement
0
2
Year
1994
3
Trim
XLT SP XTRA - 0946767
4
Parts Catalog

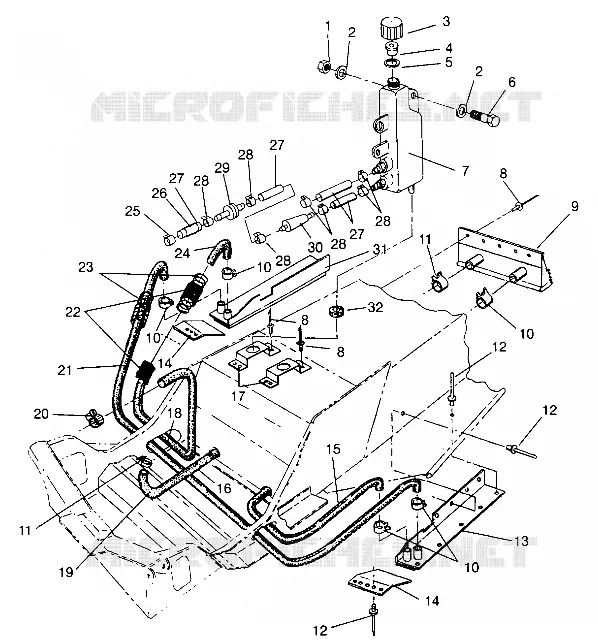

COOLING SYSTEM XLT SPECIAL (XTRA) 0946767 (4927112711015A)
5
Parts Diagram
Parts Catalog
STEERING ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711014A)
by
BRAKE XLT SPECIAL (XTRA) 0946767 (4927112711016A)
COOLING SYSTEM XLT SPECIAL (XTRA) 0946767 (4927112711015A)
1
2
2
3
4
5
6
7
8
8
8
9
10
10
10
10
11
11
12
12
12
13
14
14
15
15
16
17
19
20
21
22
23
24
25
26
27
27
27
28
28
28
28
28
29
30
31
32
1
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
2
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
3
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
4
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
5
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
6
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
7
BOTTLE O#FLOW W/FITTING
5431733
$73,49 Unit Price incl. VAT
8
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
9
EXCHANGER COOL.CTR.
2511239
Not Available
10
CLAMP WORM DRIVE
7080547
Not Available
11
CLAMP HOSE(10) Substituted by 7080564
7080498
7080844
$19,94 Unit Price incl. VAT
12
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
13
COOLING WELD LH SIDE
2511240
$185,84 Unit Price incl. VAT
14
GUARD COOL.EXT.
5222863
$42,30 Unit Price incl. VAT
15
HOSE-CROSSOVER
5410350
Not Available
16
HOSE CENTER
5410673
Not Available
17
BRACKET
5223985
Not Available
19
SPRING HOSE RETAINER
7042041
Not Available
20
CLAMP-HOSE (10) Substituted by 7080475
7080233
Not Available
21
HOSE-CROSSOVER
5410324
Not Available
22
TUBING CONVOL 1#X2.5#
5521242
Not Available
23
SPRING HOSE RETAINER
7041079
$7,97 Unit Price incl. VAT
24
HOSE ENG/SIDE EXT.
5410738
Not Available
25
CLAMP-HOSE(10)
7080134
Not Available
26
TAPE FOIL 1.50 X 7.50
5810831
Not Available
27
LINE-BOOST 3/16 ID 85 CM
8450003
8450003-1525
$136,49 Unit Price incl. VAT
28
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
29
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
30
FILTER WATER LINE Substituted by 2530024
2530010
Not Available
31
COOLING WELD RH SIDE
2511241
$165,36 Unit Price incl. VAT
32
GROMMET RUBBER
5410021
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
