Parts Catalog

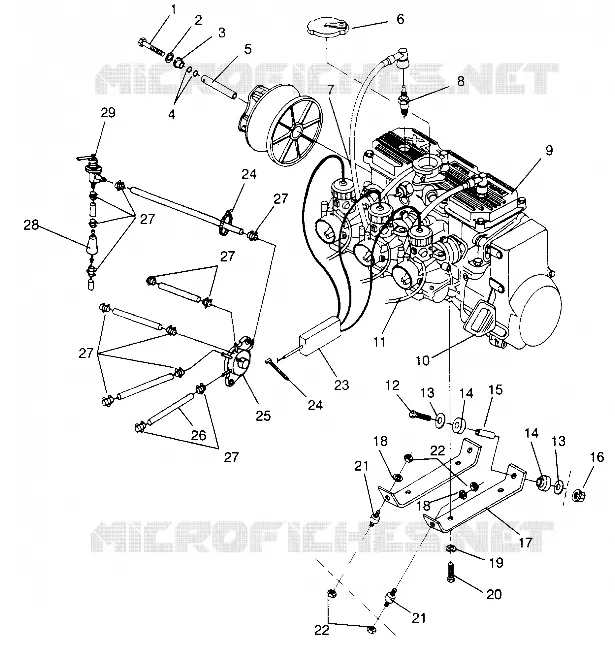

ENGINE MOUNTING XLT SPECIAL (XTRA) 0946767 (4927112711025A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711024A)
by
EXHAUST SYSTEM XLT SPECIAL (XTRA) 0946767 (4927112711026A)
ENGINE MOUNTING XLT SPECIAL (XTRA) 0946767 (4927112711025A)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
17
17
17
18
18
18
20
21
21
22
22
23
24
24
25
26
27
27
27
27
27
28
29
1
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CAP PRESSURE Substituted by 2511256
2511217
Not Available
7
CONDUIT CONVOLUTED Substituted by 4010051-30
4010051
Not Available
8
SPARKPLUG RN3C(8)
3070166
$7,34 Unit Price incl. VAT
9
ENG.EC58PL-03 [No Longer Available]
1211548
Not Available
10
HANDLE-RECOIL
5430520
Not Available
11
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
12
SCREW
7512530
$10,49 Unit Price incl. VAT
13
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
14
MOUNT ENGINE
5410390
Not Available
15
TUBE SPACER
5333258
$4,29 Unit Price incl. VAT
16
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
17
PLATE LH.MTR.MT.
5240438
Not Available
17
PLATE RH.MTR.MT.
5240439
Not Available
18
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
20
BOLT(10)
7512575
Not Available
21
MOUNT RUBBER
3110047
Not Available
22
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
23
CABLE THROTTLE W/OIL
7080543
Not Available
24
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
27
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
28
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
29
VALVE FUEL SHUT-OFF (Deluxe)
7052060
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
