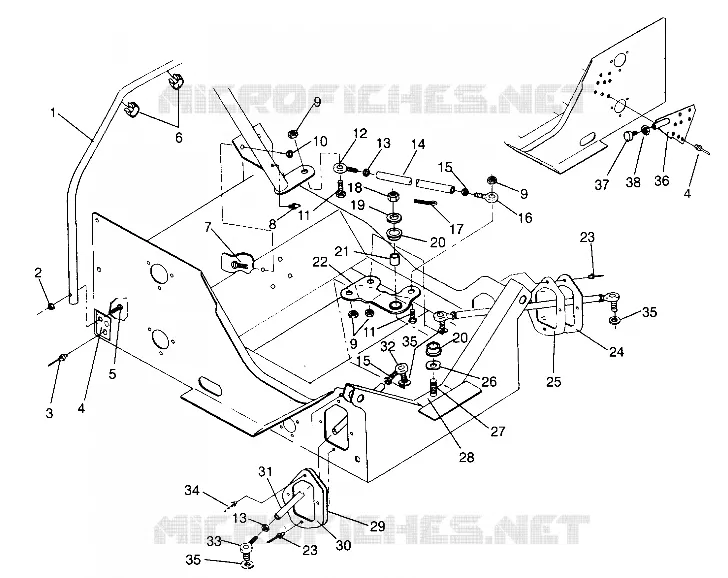

STEERING ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711014A)
5
Parts Diagram
Parts Catalog
HOOD
by
COOLING SYSTEM XLT SPECIAL (XTRA) 0946767 (4927112711015A)
STEERING ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711014A)
1
2
3
4
4
5
6
7
8
9
9
9
10
11
11
12
13
13
14
15
15
16
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
29
29
29
30
31
32
33
34
35
35
35
36
37
38
1
HOOP STRG BLK.
1012051067
Not Available
2
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
3
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
4
PLATE FR.MT SUSP. [No Longer Available]
5211508067
Not Available
5
BOLT-CARRIAGE(10)
7512262
Not Available
6
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
7
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
8
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
9
Nut
7542403
Not Available
10
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
11
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
12
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
13
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
14
ROD-DRAG LINK
5332712
Not Available
15
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
16
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
17
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
18
NUT(10)
7542712
$17,84 Unit Price incl. VAT
19
WASHER
7555721
$2,09 Unit Price incl. VAT
20
BUSHING
3563907
$7,34 Unit Price incl. VAT
21
BUSHING-SPACER
5010161
Not Available
22
ARM STEERING CTR.
1822047067
Not Available
23
RIVET(50)
7621301
Not Available
24
PLATE LH BOOT SEAL Substituted by 5211454-067
5211454
Not Available
25
BOOT LH
5410388
Not Available
26
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
27
BOLT(10)
7512658
Not Available
28
BLOCK STEERING
5630375
Not Available
29
BOOT RH TIE-ROD
5410868
Not Available
29
BOOT LH TIE-ROD
5410867
Not Available
30
PLATE BOOT SEAL Substituted by 5211453-067
5211453
$25,08 Unit Price incl. VAT
31
ROD TIE BLK.
5020737067
Not Available
32
ROD END LH 3/8#HI-ANGLE Substituted by 7061005
7060160
Not Available
33
ROD END RH 3/8#HI-ANGLE Substituted by 7060174
7060161
7060174
$99,74 Unit Price incl. VAT
34
POP RIVET(50)
7621303
Not Available
35
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
36
LIMITER TORQUE PTO BLK.
1012044067
Not Available
37
MT RUBBER TORQUE STOP
3110041
Not Available
38
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
