DRIVE TRAIN, CHAIN DRIVE
5
Parts Diagram
Parts Catalog
CHASSIS, FRAME
by
DRIVE TRAIN, DRIVE SHAFT ASM.

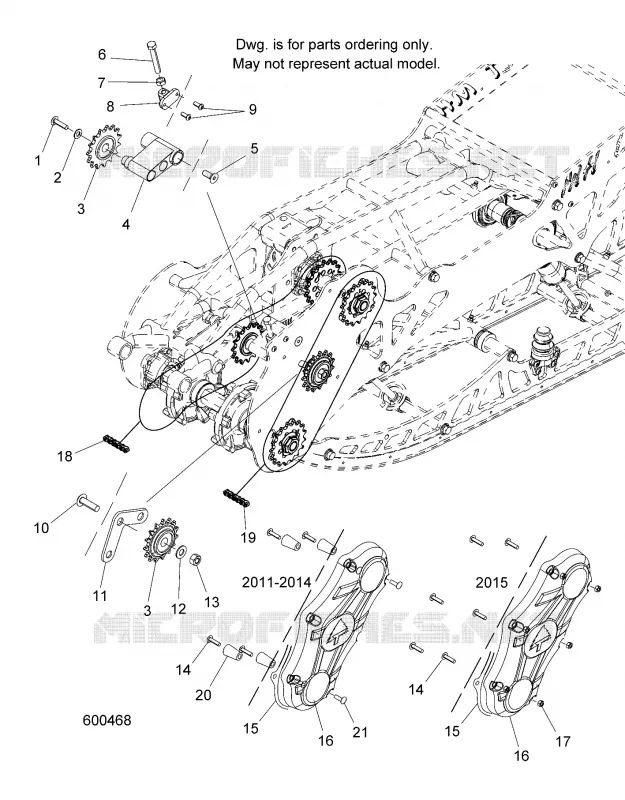

DRIVE TRAIN, CHAIN DRIVE
1
2
3
3
4
5
6
7
8
1
10
11
11
11
12
13
14
14
14
14
15
15
15
15
16
16
16
16
16
16
17
18
18
18
18
18
19
20
21
1
1
1
1
2
2
3
4
4
4
5
5
6
7
8
1
10
11
12
13
14
15
16
17
18
19
20
20
1
BOLT RAIL 1/4# [2011-2015]
7520665
7515177
$5,76 Unit Price incl. VAT
2
WASHER-FLAT [2011-2015]
7557045
7556329
$2,09 Unit Price incl. VAT
3
SPROCKET-15T IDLER [2011-2015]
2206825
Not Available
4
ASM-SPROCKET TENSIONER [2011-2015]
2206770
$202,64 Unit Price incl. VAT
5
BOLT
7520669
$7,34 Unit Price incl. VAT
6
BOLT-3/8# [2011-2015]
7520640
$6,29 Unit Price incl. VAT
7
NUT 3/8# [2011-2015]
7547868
$7,34 Unit Price incl. VAT
8
ASM-TENSIONER ADJUSTER [2011-2015]
2206769
5130530
$62,99 Unit Price incl. VAT
9
BOLT RAIL 1/4# [2011-2015]
7520665
7515177
$5,76 Unit Price incl. VAT
10
BOLT-CRG-7/16-14X1.5 GR8 YZP
7520656
$7,34 Unit Price incl. VAT
11
TENSIONER-CHAIN CASE [2015]
2206859
Not Available
11
TENSIONER-CHAIN CASE [2011-2014]
2206691
$73,49 Unit Price incl. VAT
11
REDUCER-LOWER TENSIONER SPROCKET [2011-2014]
2206858
$41,99 Unit Price incl. VAT
12
WASHER-7/16 [2011-2015]
7557038
$6,29 Unit Price incl. VAT
13
NUT-7/16 14 HEX GR8 YZP
7547871
$6,29 Unit Price incl. VAT
14
BOLT-CHAIN CASE COVER 3/8# [2011-2014]
7520668
$6,29 Unit Price incl. VAT
14
SCR-5/16 18X1.25# ALLN BTN YZ
7520674
$7,34 Unit Price incl. VAT
15
GASKET-CHAIN CASE [2011-2014 ST LT]
2206704
$57,74 Unit Price incl. VAT
15
GASKET-CHAIN CASE [2015]
2206707
$89,24 Unit Price incl. VAT
16
COVER-CHAINCASE [2011-2014][INCL. GASKET]
2206785
$309,74 Unit Price incl. VAT
16
COVER-CHAINCASE [2015][INCL. GASKET]
2206944
$110,24 Unit Price incl. VAT
16
COVER-CHAINCASE [2013-2014][INCL. GASKET]
2206787
Not Available
17
NUT-5/16# [2015]
7520286
$6,29 Unit Price incl. VAT
18
CHAIN-EK CASE [2015]
2206812
Not Available
18
CHAIN-EK ENGINE [KTM 690]
2206846
$173,24 Unit Price incl. VAT
18
CHAIN-EK CASE [2011-2014]
2206824
Not Available
18
CHAIN-EK ENGINE [2011-2015 ST LT]
2206813
$141,74 Unit Price incl. VAT
18
CHAIN-EK ENGINE [HUSKY 511]
2206847
Not Available
19
MASTER LINK EK [2011-2015]
2206830
$31,49 Unit Price incl. VAT
20
STAND-OFF CHAIN CASE [2011-2014]
2206867
Not Available
21
BOLT-3/8x.75 [2011-2014]
7520630
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
