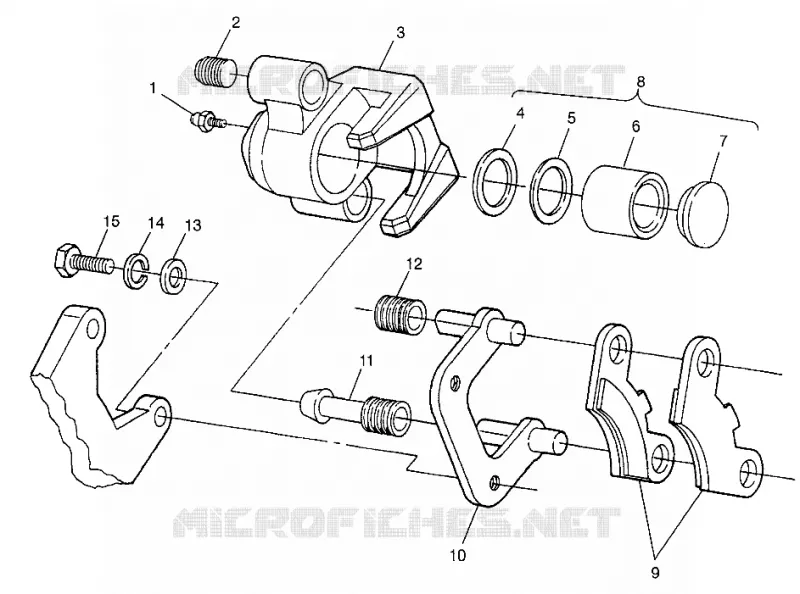

MIDDLE AXLE BRAKE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075C003)
5
Parts Diagram
Parts Catalog
FOOT PEDAL PARKING BRAKE SWEDISH MAGNUM 6X6 S97AE42E (4940754075C002)
by
SWING ARM SHOCK MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42 (4940754075C008)
MIDDLE AXLE BRAKE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075C003)
-
-
1
2
3
3
3
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
-
-
1
2
3
3
3
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
-
CALIPER ASM LH(MID-AXLE) (Complete)
1930663
Not Available
-
CALIPER ASM RH(MIDAXLE) (Complete)
1930664
Not Available
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
CALIPER LH BRAKE MACH. Substituted by 5131261 (Use w/1910234 1910309)
5131115
$262,49 Unit Price incl. VAT
3
CALIPER RH BRAKE MACH. Substituted by 5131262 (Use w/1910235 1910310)
5131116
5133880
$262,49 Unit Price incl. VAT
4
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
5
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
6
PISTON CALIPER Substituted by 5132294 (Before 2/11/99)
5020506
1930665
$104,99 Unit Price incl. VAT
7
INSULATOR CALIPER FR. Substituted by 5132294 (Before 2/11/99)
5910026
1930665
$104,99 Unit Price incl. VAT
8
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
8
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
9
KIT BRAKEPAD FRONT (Complete set of 2 pads)
2200465
$83,99 Unit Price incl. VAT
10
MOUNT CALIPER ASM.
1910037
Not Available
11
BOOT BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
12
BOOT PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
15
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
