1
Engine displacement
0
2
Year
1997
3
Trim
magnum-6x6-w97ae42a
4
Parts Catalog

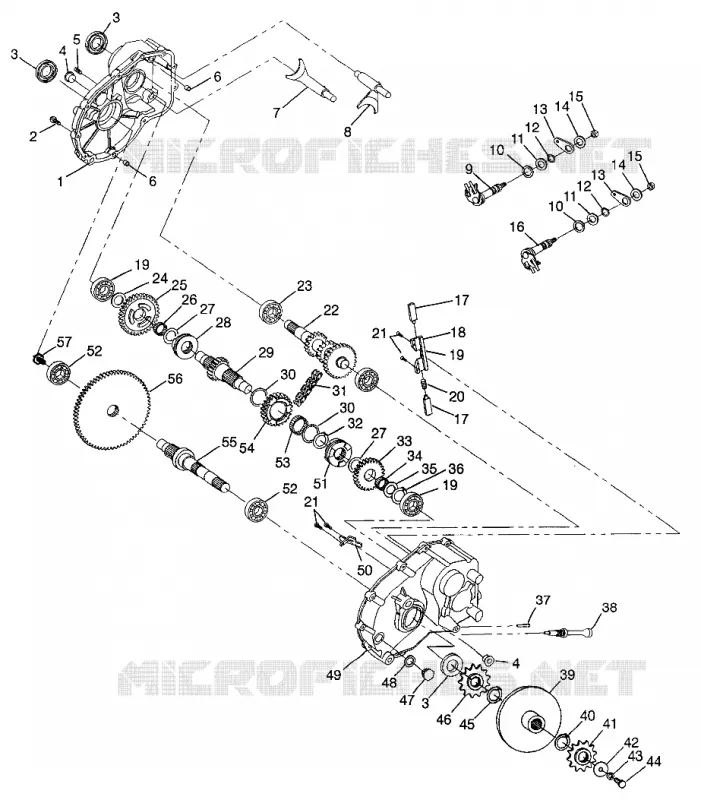

GEARCASE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D005)
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D004)
by
GEAR SELECTOR MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D007)
GEARCASE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D005)
-
1
2
3
3
3
3
4
4
5
6
6
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
19
19
19
20
21
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
46
46
46
46
46
46
47
48
49
50
51
52
52
53
54
55
56
57
-
1
2
3
3
3
3
4
4
5
6
6
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
19
19
19
20
21
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
46
46
46
46
46
46
47
48
49
50
51
52
52
53
54
55
56
57
-
GEARCASE ASM MAGNUM 4WD HCR (Incl. 1-39 48-57)
1341184
Not Available
1
CASE LH
3233002
Not Available
2
SCREW
3233026
$12,59 Unit Price incl. VAT
3
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
4
BUSHING PIVOT
3233024
Not Available
5
STUD
3233025
Not Available
6
PIPE KNOCK
3233021
Not Available
7
SHIFTRAIL LOW
3233022
Not Available
8
SHIFTRAIL HIGH/REV.
3233023
Not Available
9
SHAFT LOW SHIFT
3233151
Not Available
10
O-RING Substituted by 3233548
3233044
$52,49 Unit Price incl. VAT
11
WASHER
3233040
$17,84 Unit Price incl. VAT
12
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
13
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
14
WASHER
3233054
$12,59 Unit Price incl. VAT
15
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
16
SHAFT HIGH/REV.SHIFT
3233152
Not Available
17
PIN
3233031
$51,44 Unit Price incl. VAT
18
BRACKET
3233030
$34,32 Unit Price incl. VAT
19
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
20
SPRING
3233032
$26,24 Unit Price incl. VAT
21
SCREW Substituted by 3233747
3233033
Not Available
22
SHAFT INPUT 31T HCR
3233361
Not Available
23
BEARING
3233019
$54,59 Unit Price incl. VAT
24
WASHER
3233007
Not Available
25
GEAR 33T
3233125
Not Available
26
BEARING NEEDLE SPLIT CAGE 22 X 26 X 10
3233009
$68,24 Unit Price incl. VAT
27
WASHER
3233010
Not Available
28
DOG ENGAGEMENT LOW
3233126
Not Available
29
SHAFT REV 29T HCR
3233362
Not Available
30
WASHER
3233012
Not Available
31
CHAIN SILENT 34P
3233036
Not Available
32
RING RETAINING
3233029
$10,49 Unit Price incl. VAT
33
GEAR 30T HCR
3233359
Not Available
34
BEARING BALL
3233017
$60,89 Unit Price incl. VAT
35
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
36
RING RETAINING
3233177
$12,59 Unit Price incl. VAT
37
VENT
3233037
Not Available
38
DIPSTICK Substituted by 3233478
3233115
$52,49 Unit Price incl. VAT
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
Plug
3233448
$41,99 Unit Price incl. VAT
48
Washer
3233035
Not Available
49
CASE RH
3233003
Not Available
50
Deflector Oil
3233043
$21,20 Unit Price incl. VAT
51
DOG ENGAGEMENT HI/REV.
3233128
Not Available
52
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
53
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
54
SPROCKET 24T
3233127
Not Available
55
SHAFT OUTPUT
3233150
Not Available
56
GEAR O/P 100T HCR
3233360
Not Available
57
BUSHING SPEEDO.DRIVE
5020741
$14,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
